3 POLE - Stereo 3.5mm Metal Earphone Soldering Jack Audio Male Plug Headphone

3 Pole Stereo 3.5mm Metal Soldering Audio Male Plug Headphone Jack

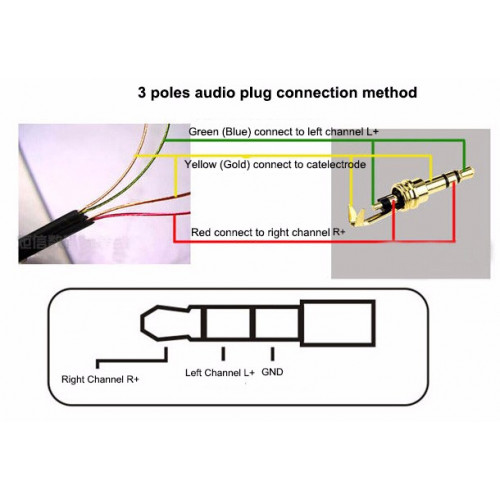

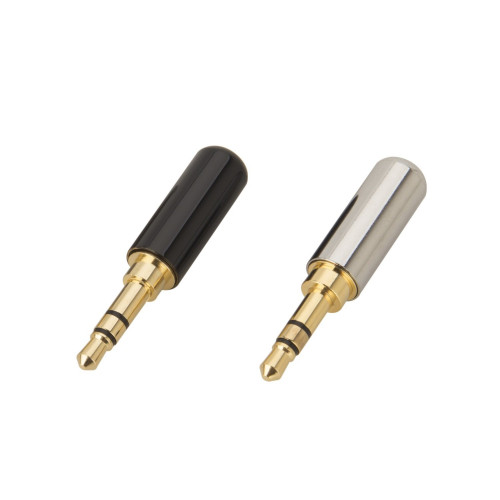

This component is a 3.5mm stereo audio male plug. It features a 3-pole (TRS) configuration. The connection method is soldering. Its construction includes a metal body for durability. Gold-plated pins are incorporated for signal conductivity. This plug is suitable for repairing or custom-building audio cables. It interfaces with standard 3.5mm audio ports. The design supports secure and permanent cable attachment.

Specifications:

• Connector Type: 3.5mm Stereo Audio Jack

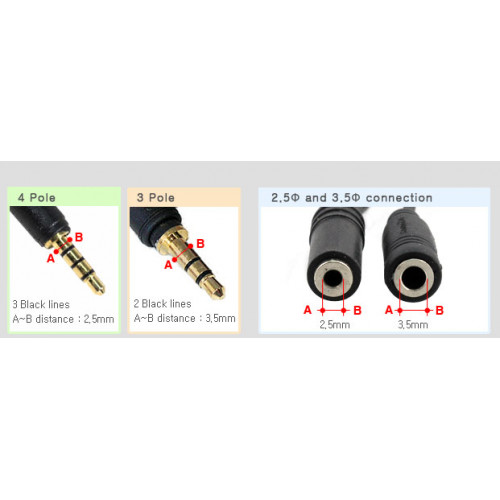

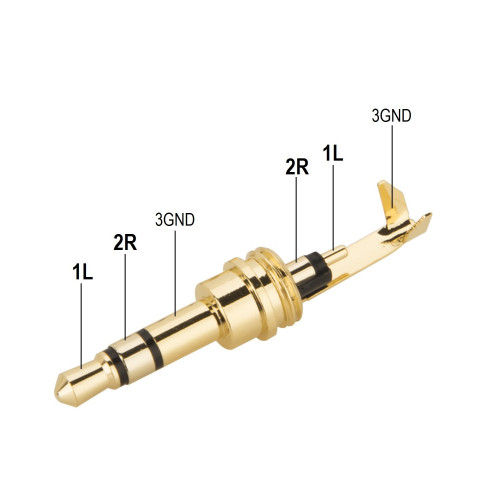

• Pole Configuration: 3 Pole (TRS)
• Gender: Male
• Connection Method: Soldering

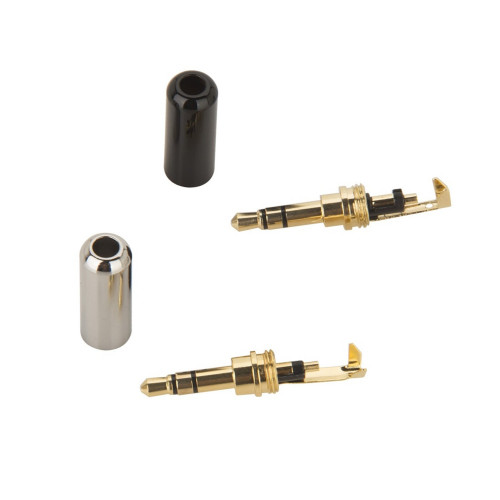

• Body Material: Copper & Alloy (Metal)
• Pin Plating: Gold Plated
• Overall Length: 37mm
• Color: Based on availability

Key features and benefits:

• 3.5mm stereo audio soldering jack
• Robust metal body construction
• Gold-plated pins for signal conductivity
• 3-pole (TRS) configuration
• Designed for secure soldering connections
• Male plug for 3.5mm audio ports

Applications:

• Repair of damaged headphone and earphone cables
• Construction of custom 3.5mm stereo audio cables
• Replacement of worn 3.5mm plugs on audio devices
• Prototyping audio circuits

Frequently Asked Questions:

Q: Is this plug compatible with mono audio cables?
A: No, this is a 3-pole (TRS) stereo plug, designed for stereo audio signals.

Q: What is the recommended soldering temperature for this plug?
A: Standard lead-free solder temperatures (280-350°C) are suitable, applying heat for minimal duration to avoid component damage.

Q: Does this plug include a strain relief mechanism?
A: The plug design accommodates cable strain relief through proper soldering and housing assembly.

Q: Can this plug be used for microphone connections?

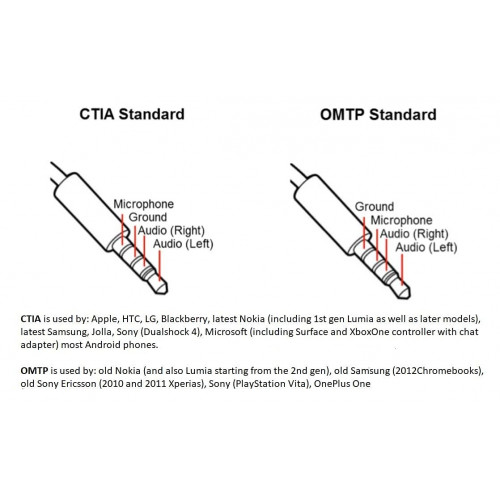

A: A 3-pole TRS plug can carry a mono microphone signal with a stereo return, but dedicated TRRS plugs are typically used for combined stereo audio and microphone.

Package Includes:

*Image shown is a representation only.
