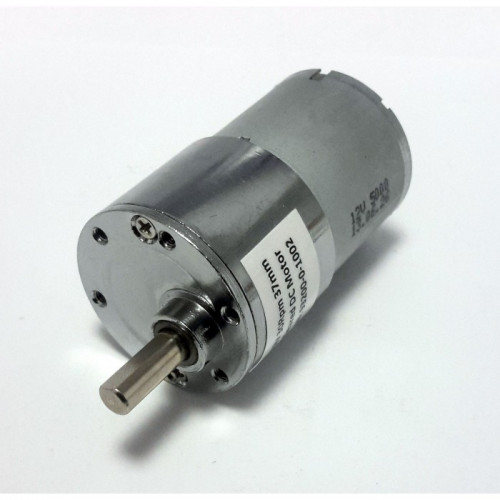

150 RPM Metal Geared motor - 6V (High Torque - upto 5 kg/cm)

150 RPM Metal Geared DC Motor - 6V, 5 kg/cm Torque

This 150 RPM metal geared DC motor operates at 6V. It provides 5 kg/cm of torque. The motor features durable metal gears. A 6mm D-shape output shaft with a metal bush is included. It is designed for low current consumption. The motor body is 25mm with a 36mm gearbox diameter. It offers smooth, low-noise operation. This component is suitable for various projects.

Specifications:

• Output RPM: 150 RPM
• Input Voltage: 6V DC (6-12V compatible)
• Rated Torque: Up to 5 kg/cm
• Stall Torque: 7.5 kg/cm
• Stall Current: 500 - 750 mA
• Shaft Length: 1.4 cm
• Shaft Diameter: 6mm (D-shape)
• Motor Weight: ~160 grams
• Motor Body Diameter: 25mm
• Gearbox Diameter: 36mm

Key features and benefits:

• Torque output: Up to 5 kg/cm
• Metal gears
• 6V DC operation with low current consumption
• 6mm D-shape output shaft with metal bush
• Motor body: 25mm diameter; Gearbox: 36mm diameter
• Low noise operation
• Applicable in robotics, automation, and DIY projects

Applications:

• Robotics and automation projects
• Electric controlled valves
• Vending machines and automatic actuators
• Automatic doors and coin refund devices
• Money detectors and soft napkin machines

Frequently Asked Questions:

Q: What is the operating voltage range for this motor?
A: The motor operates at 6V DC and is compatible with input voltages from 6V to 12V DC.

Q: What is the shaft type and diameter for mounting?
A: The motor features a 6mm D-shape output shaft with a metal bush for secure mounting.

Q: What torque can this motor provide?
A: This motor provides a rated torque of up to 5 kg/cm and a stall torque of 7.5 kg/cm.

Q: Are the gears metal or plastic?
A: The motor incorporates durable metal gears.

Package Includes:
