HDMI Socket Female SMD 90 Degree HDMI F90 Connector [High Quality]

HDMI Socket Female SMD 90 Degree F90 Connector

This HDMI Female SMD 90 Degree F90 Connector is a component for electronic designs. It is a 19-pin socket for direct integration onto printed circuit boards. The surface mount device (SMD) design supports compact integration. Its 90-degree right-angle orientation optimizes board layout. The connector features durable copper alloy contacts and thermoplastic insulation. This construction supports stable video and audio transmission. It is suitable for various electronic applications.

Specifications:

• Connector Type: HDMI Female Socket
• Mounting Type: SMD (Surface Mount Device)
• Body Orientation: 90 Degree Right Angle
• Number of Terminals: 19-Pin
• Contact Material: Copper Alloy
• Insulation Material: Thermoplastic
• Contact Resistance: 50mOhm max.
• Insulation Resistance: 100MOhm min.
• Operational Temperature: -40°C to 105°C
• Maximum Current Rating: 0.5A
• Maximum Voltage Rating: 30VAC

Key features and benefits:

• HDMI Female F90 connector for data transmission.
• 90-degree right-angle body orientation.
• Surface Mount Device (SMD) for PCB integration.
• Copper alloy contacts for conductivity and longevity.
• Operational temperature range: -40°C to 105°C.
• 19-pin configuration supports standard HDMI specifications.
• Thermoplastic insulation for electrical safety.

Applications:

• Custom PCB designs and embedded systems.
• Repair or replacement in consumer electronics.
• Development of audio/video devices.
• Industrial control and display units requiring HDMI connectivity.
• Prototyping and DIY electronics projects.

Frequently Asked Questions:

Q: What is the mounting type for this HDMI connector?
A: This HDMI connector uses Surface Mount Device (SMD) mounting.

Q: What is the pin configuration of this HDMI socket?
A: This HDMI socket features a 19-pin configuration.

Q: Can this connector operate in high-temperature environments?
A: Yes, it has an operational temperature range of -40°C to 105°C.

Package Includes:

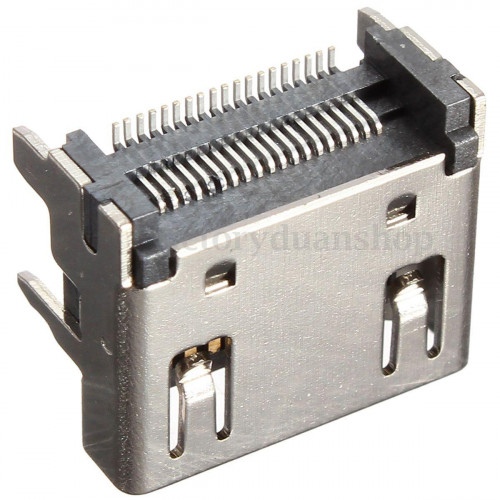

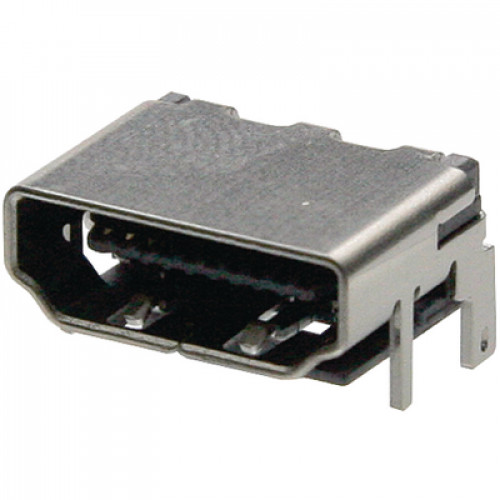

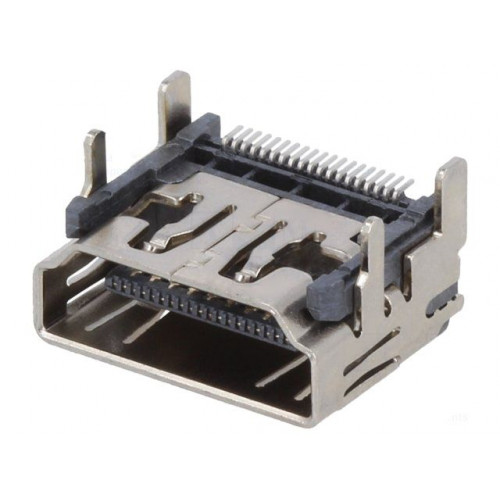

*Image shown is a representation only.
