5pcs: BSS138 SMD N-Channel Logic Level Enhancement Mode Transistor 50V 220mA SOT-23 [NXP Original]

NXP BSS138 SMD N-Channel Logic Level Enhancement Mode Transistor 50V 220mA SOT-23 (5 Pcs)

The NXP BSS138 is an N-Channel enhancement mode MOSFET. It utilizes proprietary, high cell density DMOS technology. This design minimizes on-state resistance. It provides rugged, fast switching performance. The transistor operates at a 50V drain-source voltage and 220mA continuous drain current. It is supplied in a compact SOT-23 surface mount package. This component is suitable for low voltage and low current applications. Each package contains 5 original NXP BSS138 transistors.

Specifications:

• Package / Case: SOT-23
• Drain Source Voltage: 50V
• Gate Source Voltage: +/-20V
• Drain Current (Continuous): 0.22A
• Drain Current (Pulsed): 0.88A
• Maximum Power Dissipation: 0.36W
• Operate Above 25°C: 2.8mW/°C
• Operating & Storage Junction Temperature Range: -55 to +150°C
• Maximum Lead Temperature for Soldering Purposes: 300°C
• Brand: NXP

Key features and benefits:

• N-Channel Enhancement Mode MOSFET
• Proprietary High Cell Density DMOS Technology
• Minimizes On-State Resistance
• Provides Rugged, Fast Switching Performance
• Compact SOT-23 Surface Mount Package
• Original NXP Component
• Logic Level Gate Drive Capability

Applications:

• Small Servo Motor Control
• Power MOSFET Gate Drivers
• DC to DC Converters
• Cellular & PCMCIA Card Applications
• Cordless Telephones
• Power Management in Portable & Battery Devices

Frequently Asked Questions:

Q: What is the package type for this transistor?
A: The NXP BSS138 is supplied in a SOT-23 surface mount package.

Q: What is the continuous drain current rating?
A: The continuous drain current for this transistor is 0.22A.

Q: Does this MOSFET have logic level gate drive capability?
A: Yes, the NXP BSS138 features logic level gate drive capability.

Q: How many transistors are included in this package?
A: This package includes 5 original NXP BSS138 SMD N-Channel Logic Level Enhancement Mode Transistors.

Package Includes:

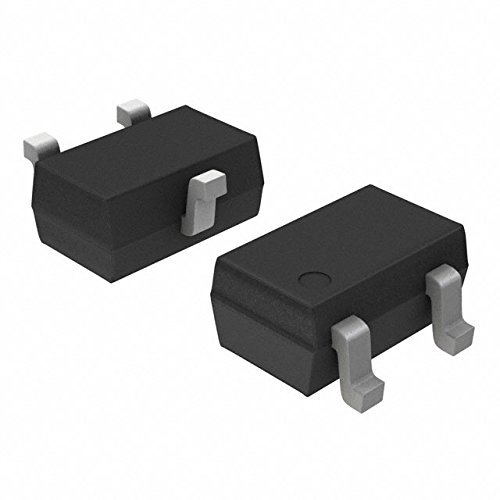

*Image shown is a representation only.
