2pcs: Audio Stereo Socket - EP Socket (TRS) 3 pole - DIP PCB Mount

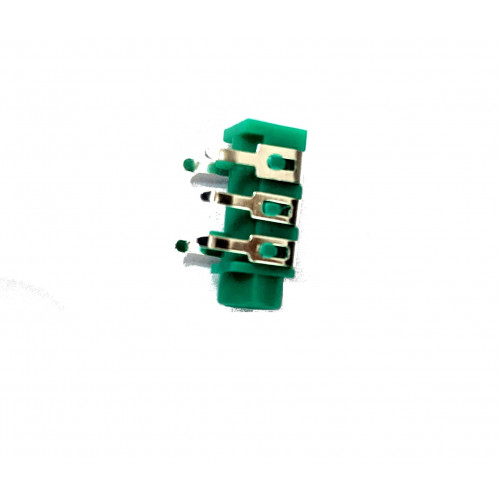

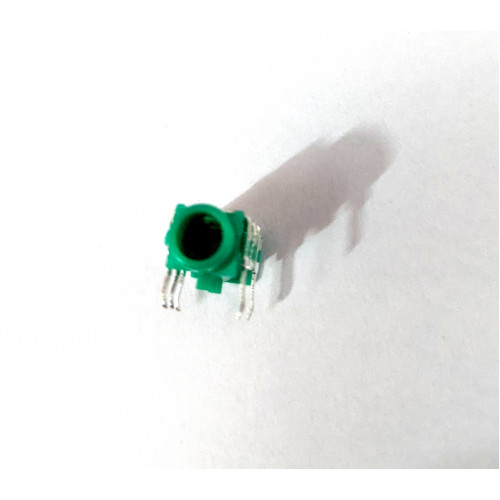

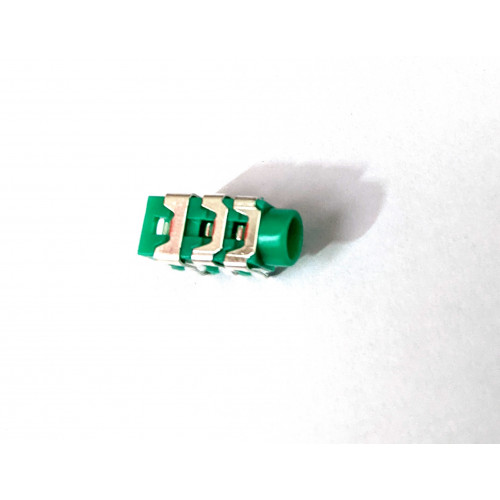

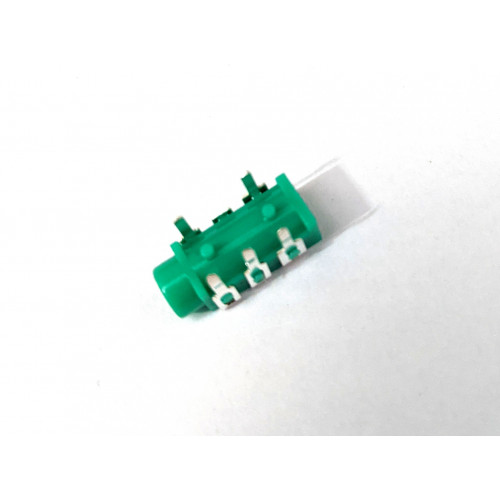

2pcs 3.5mm Audio Stereo Socket (TRS 3-Pole) - DIP PCB Mount

This package includes two 3.5mm Audio Stereo Sockets. Each socket incorporates a TRS (Tip, Ring, Sleeve) 3-pole configuration. The design facilitates DIP PCB mounting onto circuit boards. These female audio jacks provide compatibility with standard 3.5mm plugs. Construction involves plastic and metal components. Durability is specified at over 5000 cycles. The operating temperature range extends from -10 to 85 °C. Signal integrity is maintained for audio applications.

Specifications:

• Connector Type: 3.5mm Audio Stereo Socket
• Configuration: TRS 3-Pole
• Mounting Type: DIP PCB Mount
• Material: Plastic & Metal
• Salt Spray Test: 24 Hours
• Gender: Female
• Durability: Over 5000 cycles
• Insertion Force: 0.2~2 kg
• Operating Temperature: -10 to 85 °C
• Color: Black

Key features and benefits:

• 3.5mm Audio Stereo Socket (EP Socket)
• TRS (Tip, Ring, Sleeve) 3-pole configuration
• DIP PCB mounting interface
• Durability: Over 5000 cycles
• Operating temperature range: -10°C to 85°C
• Female gender connector for 3.5mm audio plugs
• Plastic and metal construction
• Salt Spray Test: 24 Hours

Applications:

• Headphones and headsets
• Mobile phones and smartphones
• Computers and laptops
• MP3/MP4 players and portable audio devices
• DIY audio projects and development boards

Frequently Asked Questions:

Q: What is the connector type and pole configuration?
A: These are 3.5mm Audio Stereo Sockets with a TRS (Tip, Ring, Sleeve) 3-pole configuration.

Q: What is the mounting method for these sockets?
A: They are designed for DIP (Dual In-line Package) PCB mounting, allowing direct soldering to a printed circuit board.

Q: What are the durability and operating temperature specifications?
A: The sockets have a durability of over 5000 cycles and an operating temperature range of -10 to 85 °C.

Package Includes:

*Image shown is a representation only.
