4pcs: Vertical Preset 10K Ω (ohm) Variable Resistor - 0.1W (Metal)

4pcs Vertical Preset 10K Ohm Variable Resistor - 0.1W Metal Trimmer

This 4-pack of Vertical Preset 10K Ohm Variable Resistors (0.1W) provides resistance adjustment. These components are also known as trimmers or potentiometers. They enable precise resistance adjustment within a circuit. Designed for PCB mounting, they feature a vertical adjustment type. The three-terminal design facilitates voltage division. The center pin outputs a variable voltage. These resistors are utilized for fine-tuning voltage levels, calibrating sensors, or setting operational points in analog circuits. Constructed with a metal element, they ensure stable operation.

Specifications:

• Track Resistance: 10Kohm
• Number of Turns: 1
• Resistance Tolerance: ± 10%
• Temperature Coefficient: ± 100ppm/°C
• Potentiometer Mounting: Through Hole
• Adjustment Type: Vertical
• Contact Resistance Variation: +1%
• Full Power Rating Temperature: 85°C
• Lead Diameter: 0.5mm
• Operating Temperature Range: -55°C to +125°C
• Resistor Element Material: Variable Metal Preset

Key features and benefits:

• Vertical Adjustment Type for PCB integration
• 10K Ohm Resistance with ±10% tolerance
• 0.1W Power Rating
• Through-Hole Potentiometer Mounting
• Durable Metal Resistor Element
• 3-Terminal Design for voltage division
• Wide Operating Temperature Range from -55°C to +125°C

Applications:

• Voltage division and signal conditioning
• Sensor calibration and fine-tuning
• Audio volume and tone control circuits
• LED brightness adjustment and dimming
• Setting operational points in analog circuits

Frequently Asked Questions:

Q: What is the function of a variable resistor?
A: A variable resistor, also known as a potentiometer or trimmer, provides adjustable resistance within an electronic circuit.

Q: How is a vertical preset resistor mounted?
A: Vertical preset resistors are typically designed for through-hole mounting on printed circuit boards (PCBs), with the adjustment screw oriented vertically.

Q: What is the significance of a 3-terminal design in a variable resistor?
A: A 3-terminal variable resistor functions as a voltage divider, where the center terminal outputs a voltage proportional to the wiper's position relative to the end terminals.

Package Includes:

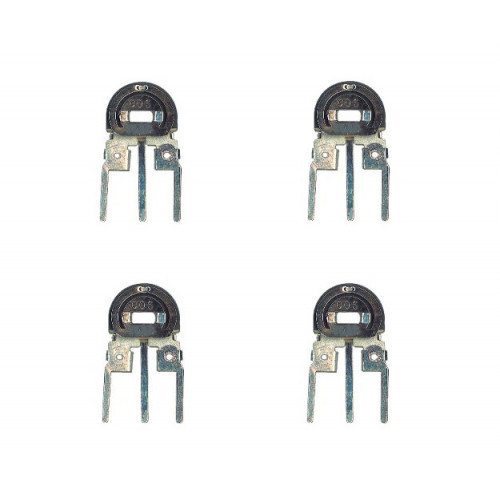

*Image shown is a representation only.
