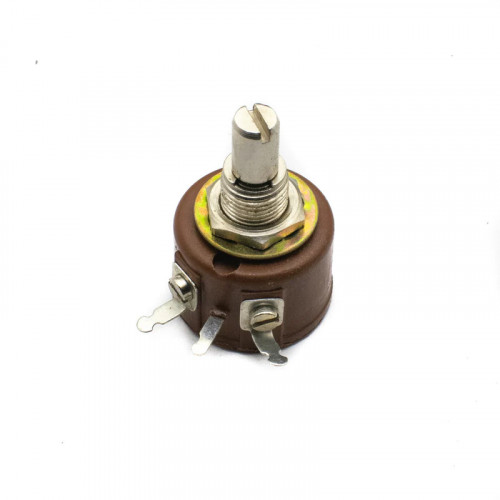

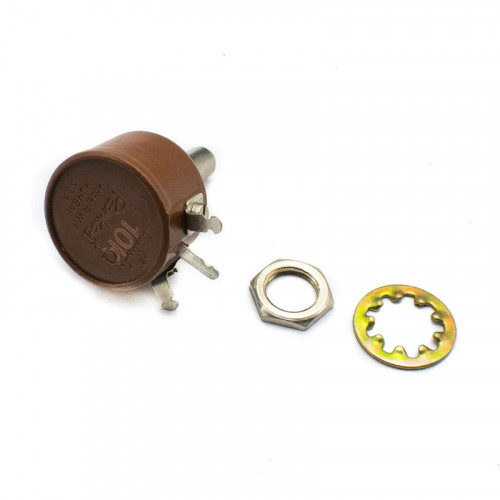

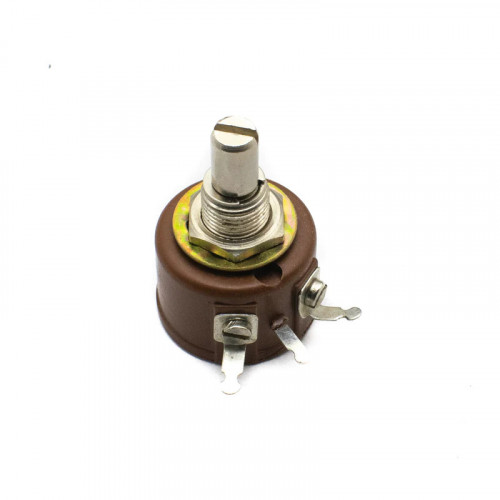

10K - 1W : Precision Potentiometer (RW-1) Single Turn - Shaft:19mm

RW-1 10K 1W Precision Potentiometer - Single Turn, 19mm Shaft

The RW-1 10K 1W Precision Potentiometer delivers exceptional performance for diverse electronic applications. Engineered with a single-turn design and a robust 19mm shaft, it ensures reliable and accurate operation. Its bush mount and conductive plastic element contribute to high durability and smooth functionality. Boasting excellent linearity of ±1%, this component provides precise and consistent resistance control. It functions effectively as both a precision potentiometer and a reliable position sensor. With a remarkable rotational life of 5 million revolutions, it's built for long-term use in demanding environments. This essential variable resistor offers high precision and stability for critical projects. Its wide operating temperature range further enhances adaptability across diverse conditions.

Specifications:

• Resistance: 10K ohm
• Power Rating: 1W
• Tolerance: ±10%
• Linearity: ±1%
• Input Voltage Max: 400V DC
• Dielectric Strength: 750V AC rms
• Output Smoothness: 0.1%
• Rotational Life: 5,000,000 shaft revolutions
• Operating Temperature Range: –65°C to +125°C
• Shaft Length: 19mm
• Element Type: Conductive Plastic
• Mounting Type: Bush Mount

Key features and benefits:

• 10K ohm resistance with 1W power rating
• Single-turn design for straightforward, precise adjustment
• Bush mount for secure and stable installation
• Conductive plastic element ensures smooth, reliable operation
• Excellent linearity of ±1% for accurate resistance control
• High rotational life of 5,000,000 shaft revolutions
• Wide operating temperature range: –65°C to +125°C
• Robust 19mm shaft for enhanced durability

Applications:

• Precision voltage and current control
• Accurate position sensing in robotics and automation
• Calibration and tuning circuits
• Audio equipment volume and tone control
• Industrial control systems

Package Includes:

*Image shown is a representation only.
