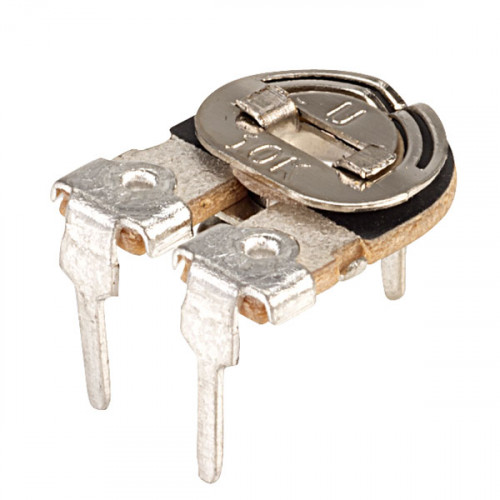

Preset 500 (ohm) [500E : 500R] Variable Resistor - Metal (EP085)
- Product Code: R_VRP_500
- Availability: In Stock
-
₹6.00 (+ GST)
- 10 or more quantity/sets : ₹5.75
- 20 or more quantity/sets : ₹5.50
- 50 or more quantity/sets : ₹4.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
Preset 500 Ohm Variable Resistor (EP085) - Metal Element, PCB Through-Hole Mount
The EP085 Preset 500 Ohm Variable Resistor is a mini component. It features a 500 Ohm track resistance with a ±10% tolerance. This resistor is PCB mountable via a through-hole design. A metal element controls resistance. The 3-terminal configuration facilitates direct integration into circuit boards. Adjustment of the preset varies voltage output. It operates within a temperature range of -55°C to +125°C. The component is single-turn with a top adjustment type.
Specifications:
- Track Resistance: 500 Ohm (500E)
- Number of Turns: 1
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Mounting Type: Through Hole (PCB Mount)
- Adjustment Type: Top
- Contact Resistance Variation: +1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistor Element Material: Metal
Key features and benefits:
- 500 Ohm track resistance
- PCB mountable through-hole design
- 3-Terminal configuration
- Metal resistor element
- Top adjustment type
- Single turn operation
- Operating temperature range: -55°C to +125°C
- Resistance tolerance: ±10%
Applications:
- Voltage regulation and division circuits
- Sensor calibration and signal conditioning
- Prototyping and hobby electronics projects
- LED brightness control and motor speed adjustment
- Audio volume control and tone adjustments
Frequently Asked Questions:
Q: What is the nominal resistance of the EP085 variable resistor?
A: The EP085 variable resistor has a track resistance of 500 Ohm.
Q: How is the EP085 variable resistor mounted on a PCB?
A: This component features a through-hole, PCB mountable design.
Q: What material is used for the resistive element in the EP085?
A: The resistor element in the EP085 is constructed from metal.
Q: What is the lead diameter for PCB integration?
A: The lead diameter for the EP085 is 0.5mm.
Q: Does the EP085 require multiple turns for adjustment?
A: No, the EP085 is a single-turn variable resistor.
Package Includes:
1 x Preset 500 Ohm Variable Resistor (EP085).*Image shown is a representation only.
