TDA2030 IC 18W Hi-Fi Audio Amplifier [Original]

TDA2030 18W Hi-Fi Audio Amplifier IC - Original

The TDA2030A is a versatile monolithic integrated circuit, specifically engineered for low-frequency Class AB audio amplification. Housed in a robust Pentawatt package, it delivers a powerful 18W output, making it ideal for a wide array of audio projects. This IC is renowned for its high output current capability and exceptionally low harmonic and crossover distortion, ensuring superior audio quality. Designed for reliability, it operates efficiently with unregulated power supplies up to 44V. Advanced protection features are integrated, including a sophisticated short-circuit protection system that safeguards output transistors by limiting dissipated power. Additionally, a conventional thermal shut-down system prevents overheating, significantly enhancing device longevity. Its compact design minimizes external component requirements, simplifying circuit design and reducing overall space. Choose the TDA2030 for high-performance, durable, and crystal-clear audio amplification.

Specifications:

• Amplifier Type: Class AB
• Output Power: 18W
• Supply Voltage (Max): 44V
• Package Type: Pentawatt
• Distortion: Very Low Harmonic and Crossover
• Protection: Short Circuit, Thermal Shutdown
• Output Current: High Capability
• Frequency Range: Low Frequency

Key features and benefits:

• High Performance Class AB Amplifier
• High Output Current Capability
• Very Low Harmonic and Crossover Distortion
• Integrated Short Circuit Protection
• Built-in Over Temperature (Thermal) Protection
• Suitable for Unregulated Power Supplies (up to 44V)
• Reduced Size and Space Requirements
• Minimised External Components Required

Applications:

• Home audio systems
• DIY amplifier projects
• Active speaker designs
• Portable audio devices
• Educational electronics kits
• Small PA systems

Package Includes:

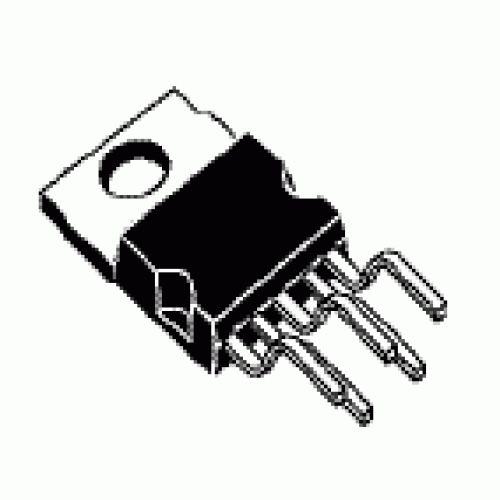

*Image shown is a representation only.
