Single Port RJ45 Ethernet Socket JP011821UNL (RJ45 Connector) - (Original - Pulse jack)
- Product Code: PC-RJ45_Jack_WOL
- Availability: Out Of Stock
-
₹23.00 (+ GST)
- 10 or more quantity/sets : ₹22.00
- 50 or more quantity/sets : ₹21.00
- 100 or more quantity/sets : ₹20.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

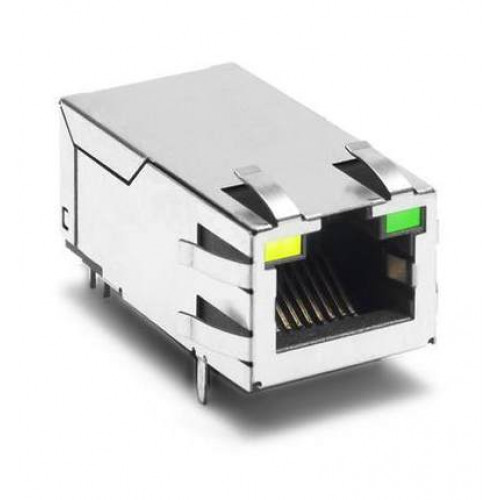

PulseJack JP011821UNL Single Port RJ45 Ethernet Socket with 10/100 Base-Tx Magnetics
Introducing the PulseJack JP011821UNL, a high-performance single-port RJ45 Ethernet socket. Engineered by Pulse Electronics, it's designed for robust networking applications. This female RJ45 connector features integrated 10/100 Base-Tx internal magnetics for reliable data transmission. It supports both CAT5 and CAT6 fast Ethernet cables, ensuring broad compatibility. The right-angle, through-hole mounting design allows for convenient integration into circuit boards. Built-in Green and Orange-Yellow LEDs provide visual status indication. Benefit from superior EMI suppression and 100% electrically tested magnetics. This RoHS compliant component is essential for modern networking devices, guaranteeing quality and performance.
Specifications:
- Manufacturer: Pulse Electronics Corporation
- Series: PULSEJACK™ JP
- Part Number: JP011821UNL
- Connector Type: RJ45 (Female)
- Number of Ports: 1
- Data Rate Support: 10/100 Base-Tx
- Mounting Type: Through Hole
- Orientation: 90° Angle (Right), Tab-Down
- LED Color: Green, Orange - Yellow
- Shielding: Shielded, EMI Finger
- Operating Temperature: 0°C to 70°C
- RoHS Compliance: Yes
Key features and benefits:
- Single Port 10/100 Base-Tx RJ45 Ethernet Socket
- Integrated Internal Magnetics for enhanced signal integrity
- Right-Angle (Side Entry) Through-Hole Mounting
- Equipped with Green and Orange-Yellow LEDs for status indication
- High performance for maximum EMI suppression
- Suitable for CAT5 and CAT6 Fast Ethernet cables
- 100% electrically tested magnetics for HI-POT and functionality
- RoHS compliant for environmental safety
Applications:
- Network cards (10/100/1000M), PCMCIA net cards, USB Hubs
- Network switches, routers, and network bridges
- Fiber optic transceivers, optical transceivers, and IP phones
- Internet set-top boxes, internet cameras, and computers
- Telecommunication equipment, MODEMs, HomePNA, DSL/ADSL devices
Package Includes:
1x Single Port RJ45 Ethernet Socket JP011821UNL.*Image shown is a representation only.
