TowerPro SG90 180 Degree Rotation Servo Motor

  • Product Code: RM_SM_SG90_180
  • Availability: In Stock
  • ₹89.00 (+ GST)

  • 10 or more quantity/sets : ₹85.00
  • 25 or more quantity/sets : ₹80.00

  • Shipping Charges Start from Rs.49*
  • Fast Order Processing <24hr
  • Shipment using reputed courier with 90% delivery in 1 - 3 working days
  • All order with GST invoice (B2B: 100% cliam GST credit input tax)

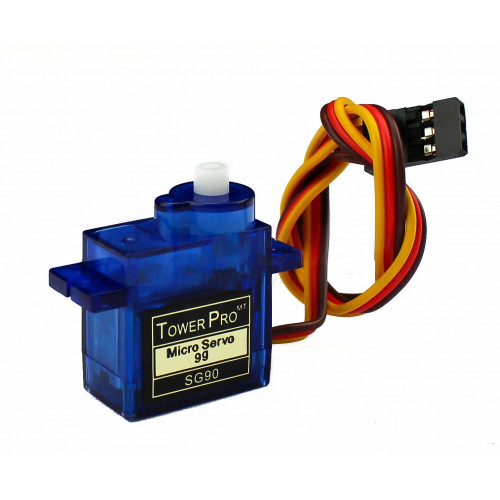

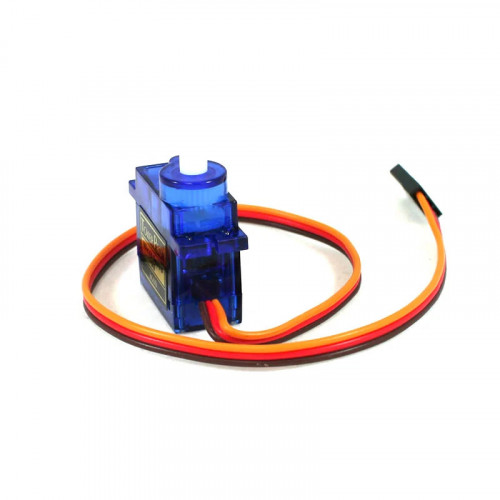

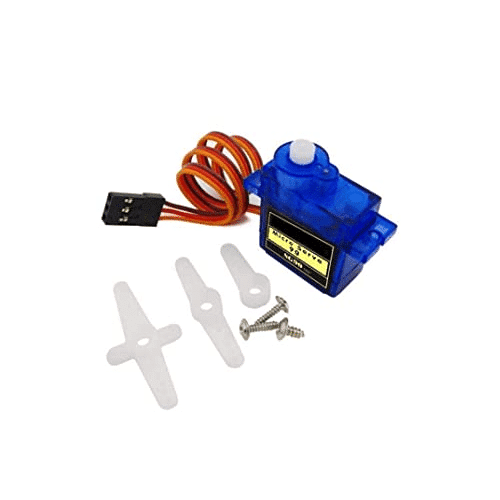

Servo Motor - SG90 180 Degree [Original - High quality]

The TowerPro SG90 9g Mini Servo is a 180° rotation servo. It is a Digital Servo Motor that receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

It equips Carbon Fiber Gears which makes the servo motor much lighter than the same metal gear motor. For small load applications using the metal gear, servo motor adds on unnecessary weight, so we suggest using these lightweight plastic gear servo motors.


Specifications & Feature
  • Model : SG90
  • Weight(gm) : 9
  • Operating Voltage (VDC) :3.0 ~ 7.2
  • Operating Speed @4.8V :0.10sec/60°
  • Stall Torque @ 4.8V (Kg-Cm) :1.2
  • Stall Torque @6.6V (Kg-Cm) :1.6
  • Operating Temperature (°C) :-30 to 60
  • Dead Band Width ( μs) :7
  • Gear Type :Glass Fiber
  • Rotational Degree :180º
  • Servo Plug :JR
  • Cable Length (cm) :25
  • Length (mm) :22.8
  • Width (mm) :12.6
  • Height (mm) :34.5
Wire Details:
  • Red – Positive
  • Brown – Negative
  • Orange – Signal

Features

  • High resolution
  • Accurate positioning
  • Fast control response
  • Constant torque throughout the servo travel range
  • Excellent holding power


*Image shown is a representation only.




Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
