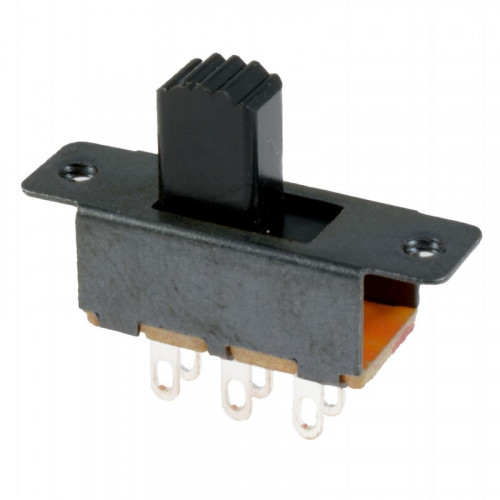

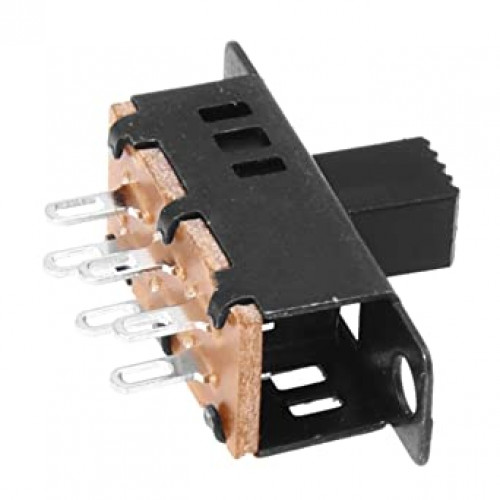

Slide Switch - DPDT (6pin) on-on

DPDT 6-Pin Slide Switch - On-On, 50V 0.5A

The DPDT 6-Pin Slide Switch is a compact electromechanical component. It provides Double-Pole, Double-Throw (DPDT) functionality, enabling simultaneous control of two independent circuits. The switch features an on-on mechanism, offering two stable operating positions. A smooth sliding mechanism facilitates state transitions. Integrated mounting holes are provided for secure installation. This component is rated for a maximum of 50V and 0.5A. It is suitable for signal-level and low-power circuit applications.

Specifications:

• Switch Type: DPDT (Double Pole Double Throw)
• Number of Pins: 6
• Voltage Rating: 50V
• Current Rating: 0.5A
• Positions: 2-Position Slide (On-On)
• Body Color: Black
• Dimensions (L x W x H): 22mm x 6mm x 21mm
• Mounting Hole Diameter: 2.5mm

Key features and benefits:

• Double-Pole, Double-Throw (DPDT) functionality
• Compact form factor
• Integrated mounting holes
• Smooth sliding actuation
• Rated for 50V and 0.5A
• Two stable on-on positions

Applications:

• DIY electronics and prototyping
• Low-power circuit control
• Signal switching applications
• Embedded systems and automation projects

Frequently Asked Questions:

Q: What is the maximum voltage and current this switch can handle?
A: The switch is rated for a maximum of 50V and 0.5A.

Q: Are mounting screws included with the switch?
A: Mounting screws are not included. The switch body has mounting holes with a diameter of 2.5mm.

Q: Can this DPDT switch be used for SPDT applications?
A: Yes, a DPDT switch can be wired to function as an SPDT switch by utilizing only one pole.

Package Includes:

*Image shown is a representation only.
