PIC16F72 Flash 28-pin 2kB Microcontroller with A/D

PIC16F72 Flash 28-pin 2kB Microcontroller with 8-bit A/D Converter

The PIC16F72 is a 28-pin Flash microcontroller. It integrates 2kB of Flash program memory and 128 bytes of SRAM data memory. An 8-bit five-channel A/D converter is included for analog input processing. The device incorporates a high-performance RISC CPU with 35 single-word instructions. Peripheral support includes 22 I/O pins, two 8-bit timers, one 16-bit timer, and 10-bit PWM. An integrated SSP module facilitates SPI and I²C communication. The microcontroller operates at speeds up to 20MHz. CMOS technology provides low power consumption and a wide operating voltage range.

Specifications:

• CPU Architecture: High-Performance RISC
• Instruction Set: 35 single word instructions
• Max Operating Speed: 20MHz
• Program Memory: 2048 bytes Flash
• Data Memory: 128 bytes SRAM
• I/O Pins: 22
• A/D Converter: 8-bit, 5 channels
• Timers: Two 8-bit, One 16-bit
• PWM Module: 10-bit Capture/Compare (CCP)
• Serial Communication: SSP (SPI, I²C)
• Operating Voltage Range: 2.0V to 5.5V
• Low Power Consumption: < 0.6 mA typical @ 3V, 4MHz

Key features and benefits:

• 28-pin microcontroller architecture
• 2048 bytes (2KB) Flash program memory and 128 bytes SRAM data memory
• Integrated 8-bit, 5-channel Analog-to-Digital Converter
• 22 configurable I/O pins
• Two 8-bit timers and one 16-bit timer
• 10-bit Pulse Width Modulation (PWM) module
• Serial Synchronous Peripheral (SSP) with SPI and I²C support
• High-performance RISC CPU with 35 single-word instructions

Applications:

• Sensor interfacing and data acquisition systems
• Embedded control and automation projects
• Robotics and motor control applications
• Industrial monitoring and instrumentation
• Educational prototyping and DIY electronics

Frequently Asked Questions:

Q: What is the program memory size of the PIC16F72?
A: The PIC16F72 features 2048 bytes (2KB) of Flash program memory.

Q: What analog-to-digital conversion capabilities does the PIC16F72 offer?
A: The PIC16F72 includes an 8-bit, five-channel Analog-to-Digital (A/D) converter.

Q: What serial communication protocols are supported by the PIC16F72?
A: The PIC16F72 supports SPI and I²C communication via its integrated Serial Synchronous Peripheral (SSP) module.

Package Includes:

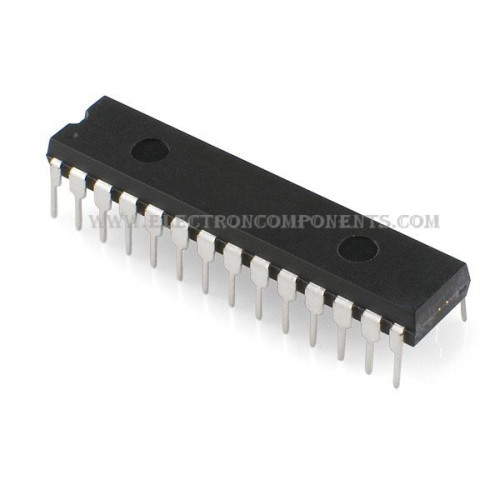

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
