PCB Board Universal - Perforated 2x2" inches

PCB Board Universal Perforated 2x2 Inch

The Universal Perforated PCB Board measures 2x2 inches. This board provides a platform for prototyping and circuit development. Its perforated design facilitates component placement and soldering. The board supports various components and integrated circuits. It is suitable for testing designs and creating sample circuits. The tin-coated surface ensures solderability. This board assists in electronic projects. It supports learning basic circuit principles and developing prototypes.

Specifications:

• Board Size: 2 x 2 inches (50.8 x 50.8 mm)
• Board Type: Universal Perforated PCB
• Material: FR-4 Fiberglass
• Surface Finish: Tin-coated
• Hole Pitch: 2.54 mm (0.1 inch)
• Hole Diameter: Approx. 1.0 mm
• Number of Holes: Approx. 361 (19x19 grid)
• Color: Green

Key features and benefits:

• General-purpose design for electronic applications
• Perforated grid supports flexible component placement
• Tin-coated pads provide solderability
• Supports through-hole components and integrated circuits
• FR-4 fiberglass construction
• Compact 2x2 inch (50.8x50.8mm) dimensions
• Supports prototyping and circuit testing

Applications:

• Testing electronic components and circuits
• Developing sample circuits and prototypes
• Educational experiments
• DIY electronics projects
• Integration of sub-circuits into larger systems

Frequently Asked Questions:

Q: What is the hole pitch for component placement?
A: The hole pitch is 2.54 mm (0.1 inch).

Q: Can this PCB be cut to a smaller size?
A: Yes, the FR-4 fiberglass material permits cutting to smaller dimensions with appropriate tools.

Q: Is this board suitable for surface-mount device (SMD) components?
A: This board is designed for through-hole components. SMD components can be adapted, but dedicated SMD prototyping boards are available.

Q: What is the material composition of the board?
A: The board is constructed from FR-4 Fiberglass with a tin-coated surface finish.

Package Includes:

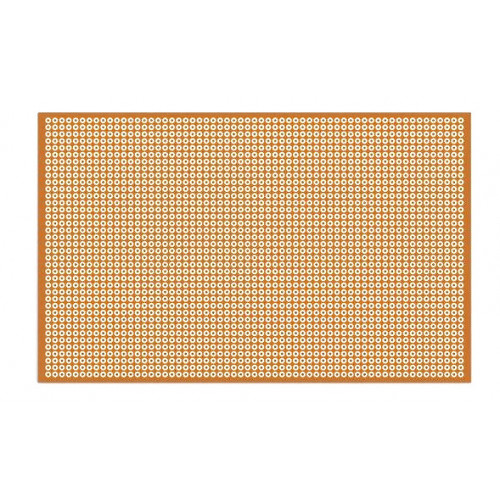

*Image shown is a representation only.
