Motor Driver Board - L298

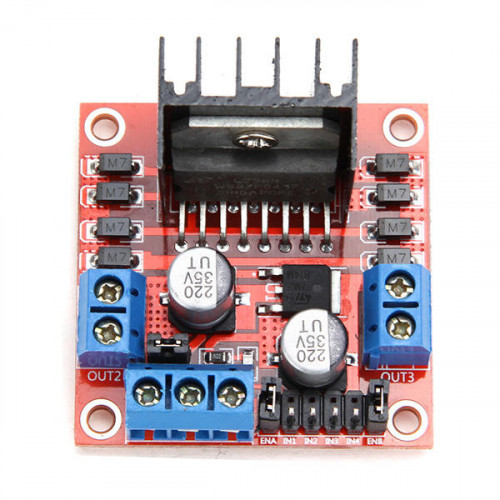

L298 Dual H-Bridge Motor Driver Board

The L298N Dual H-Bridge Motor Driver Board controls two DC motors or one bipolar stepper motor. Each H-bridge delivers up to 2 Amperes. The operating voltage range is 8V to 46V. An integrated heatsink manages thermal dissipation. Flyback diodes and over-temperature protection are included. Terminal blocks facilitate logic interfacing. The board features double-sided PCB construction. Integrated debugging LEDs provide status indication for motor control applications.

Specifications:

• Driver Chip: L298N
• Operating Voltage: 8V to 46V
• Output Current (per H-Bridge): 2A
• Motor Type Support: 2x DC Motors or 1x Bipolar Stepper Motor
• Protection Features: Over-temperature, Flyback Diodes
• Heat Dissipation: Integrated Heatsink
• PCB Type: Double-sided PTH
• Mounting Holes: 4
• Debugging Indicators: 2 LEDs per H-Bridge

Key features and benefits:

• Dual H-Bridge design for two DC motors or one bipolar stepper motor.
• Output current of 2 Amperes per H-Bridge.
• Operating voltage range from 8V to 46V.
• Integrated heatsink for thermal management.
• Built-in flyback diodes protect against inductive kickback.
• Over-temperature protection.
• Debugging LEDs provide status indication.

Applications:

• Robotics projects, including mobile robots and robotic arms.
• Automation systems such as conveyor belts and automated doors.
• RC vehicles and drone motor control.
• DIY electronics and hobbyist projects.
• Educational kits for motor control instruction.

Frequently Asked Questions:

Q: What motor types are compatible with the L298N driver board?
A: The L298N driver board supports two DC motors or one bipolar stepper motor.

Q: What is the operating voltage range for the L298N module?
A: The L298N module operates within an 8V to 46V voltage range.

Q: Does the L298N board include thermal management?
A: Yes, the L298N board incorporates an integrated heatsink for thermal management and includes over-temperature protection.

Package Includes:

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
