4pcs: C114 : 100ma/50v NPN transistor

C114 100mA/50V NPN Transistor with Integrated 10kΩ Bias Resistors (4 Pcs)

The C114 NPN transistor functions in switching and amplification circuits. This package contains four transistors. Integrated 10kΩ base and emitter-base bias resistors are present. These resistors reduce external component count in circuit designs. Each transistor is rated for 100mA collector current and 50V collector-emitter breakdown voltage. They are applicable in compact inverter circuits and general-purpose designs. The through-hole TO-92 package facilitates integration into electronic projects.

Specifications:

• Collector Current (Ic) (Max): 100mA
• Collector-Emitter Breakdown Voltage (Max): 50V
• Base Resistor (R1): 10kΩ
• Emitter-Base Resistor (R2): 10kΩ
• DC Current Gain (hFE) (Min): 30 @ 5mA, 5V
• Vce Saturation (Max): 150mV @ 500µA, 10mA
• Power Dissipation (Max): 500mW
• Mounting Type: Through Hole
• Package / Case: TO-226-3, TO-92-3 (TO-226AA)

Key features and benefits:

• Integrated 10kΩ base and emitter-base bias resistors.
• Reduces external component count in circuit designs.
• Rated for 100mA collector current and 50V collector-emitter breakdown voltage.
• Through-hole TO-92 (TO-226AA) package.
• Vce saturation voltage: 150mV @ 500µA, 10mA.
• Applicable in compact inverter circuits due to integrated bias resistors.
• Thin-film bias resistors minimize parasitic effects.

Applications:

• General-purpose switching and signal amplification.
• Compact inverter circuits.
• Driver circuits for LEDs and small relays.
• Logic level shifting.
• Prototyping.

Frequently Asked Questions:

Q: What is the lead pitch for the TO-92 package?
A: The standard TO-92 package typically has a 2.54mm (0.1 inch) lead pitch.

Q: Can these C114 transistors replace standard NPN transistors without integrated resistors?
A: Yes, the C114 can replace standard NPN transistors. The integrated 10kΩ bias resistors (R1 and R2) will affect the base drive circuit and may require adjustments to external components.

Q: What is the maximum operating temperature for this transistor?
A: The maximum operating temperature is typically defined by the power dissipation and thermal resistance of the package. For the 500mW power dissipation, refer to the datasheet for specific thermal resistance values.

Q: Are these transistors suitable for surface-mount applications?
A: No, these C114 transistors are supplied in a through-hole TO-92 package and are not designed for surface-mount applications.

Package Includes:

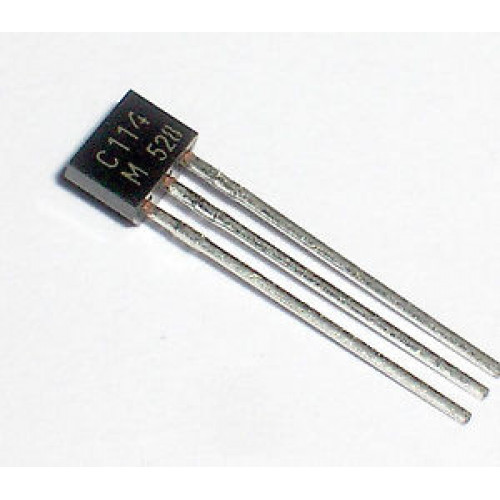

*Image shown is a representation only.
