2pcs: BC639 Transistor NPN High Current Transistor 80V 1A TO-92 [Original]

BC639 Transistor NPN High Current Transistor 80V 1A TO-92

BC639 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.

Features:

• Advanced process technology
• Low error voltage
• Fast switching speed
• Full-voltage operation
• High power and current handling capability

Specifications:

• Transistor Polarity: NPN
• Collector-Emitter Breakdown Voltage (BVCEO): 80V
• Collector-Emitter Voltage (VCEO): 80V
• Emitter-Base Voltage (VEBO): 5V
• Continuous Collector Current (IC): 1A
• Base Current (IB): 100mA
• Transition Frequency (fT): 100MHz
• DC Current Gain (hFE): 40-160
• Operating Temperature Range: -65 - 150°C
• Collector Power Dissipation (PC): 1W

Package includes: 2 x BC639 Transistor NPN High Current Transistor 80V 1A TO-92

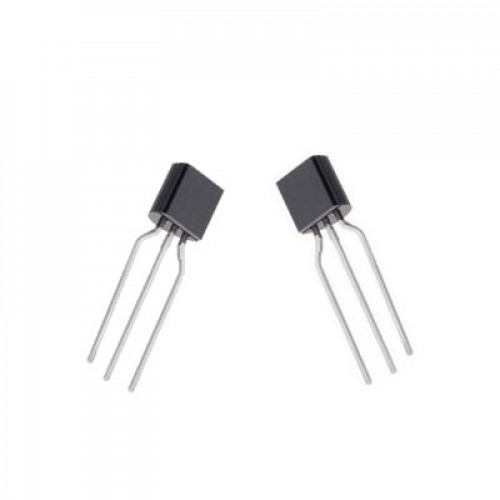

* Image shown is a representation only.
