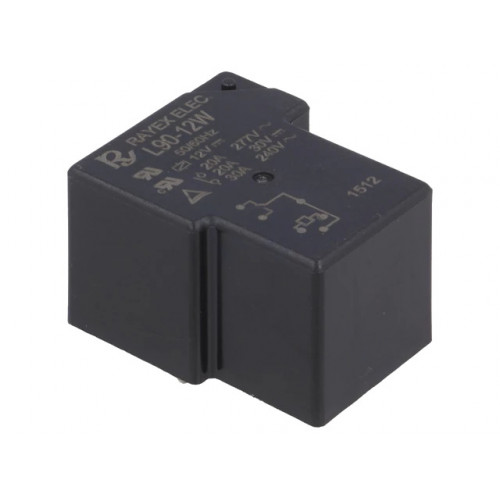

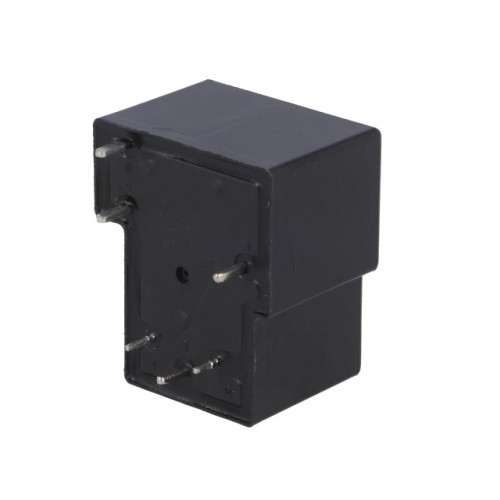

24v 30A Pcb Relay - H90 / L90 /T90 [T-Type 6pin] - PCB Mount [High Quality - Industrial Approved]
- Product Code: MR_SPDT24_30P
- Availability: In Stock
-
₹52.00 (+ GST)
- 10 or more quantity/sets : ₹50.00
- 50 or more quantity/sets : ₹48.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
24V 30A PCB Power Relay - H90/L90/T90 T-Type 6-Pin - Industrial Grade
The 24V 30A PCB Power Relay (H90/L90/T90 series) is a high-quality, industrial-approved component engineered for robust switching applications. It is specifically designed for controlling high-current AC devices with precision. This relay seamlessly integrates with microcontrollers or various sensor outputs, offering versatile control options. It's an ideal choice for managing demanding appliances such as air conditioners, electric heaters, and geysers. The T-Type 6-pin configuration ensures reliable switching of loads up to 30A at 220-240V AC. Built for exceptional durability, it guarantees stable and safe operation even in the most demanding environments. Its RoHS compliance underscores a commitment to environmental standards. The compact PCB mount design optimizes space utilization within your projects. Choose this relay for dependable performance and precise control in all your power switching needs.
Specifications:
- Coil Voltage: 24V DC
- Maximum Contact Current: 30A (@250VAC)
- Operating Current: 0.075A
- Coil Resistance: 660 Ohm
- Contact Form: SPDT (Single Pole Double Throw)

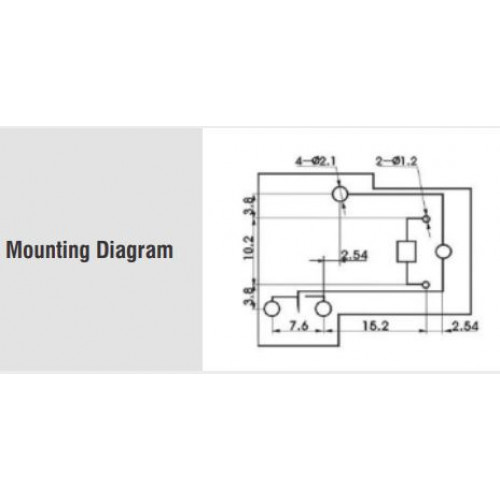

- Pin Configuration: T-Type 6-Pin
- Mounting Type: PCB Mount
- Series: H90 / L90 / T90
- Dimensions (LxWxH): 31 x 27 x 19 mm
- Compliance: RoHS
- Color: Black / White / Blue (Subject to availability)
Key features and benefits:
- High Current Switching Capability (30A)
- Industrial Approved for demanding applications
- RoHS Compliant for environmental safety
- Compact PCB Mount Design
- Durable T-Type 6-Pin Configuration
- Reliable Performance for AC device control
- Cost-Effective Power Switching Solution
Applications:
- Home Automation Systems
- Industrial Control Panels
- HVAC Systems (Air Conditioners, Heaters)
- Water Heaters & Geysers
- Motor Control Circuits
- High Power Lighting Systems
Package Includes:
1 x 24V 30A PCB Power Relay (H90/L90/T90 T-Type 6-Pin).*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
