Spdt 9V 7A Pcb mount Relay - (sugar cube)
- Product Code: MR_SPDT9_5P
- Availability: In Stock
-
₹21.00 (+ GST)
- 10 or more quantity/sets : ₹20.00
- 50 or more quantity/sets : ₹19.50
- 100 or more quantity/sets : ₹18.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
SPDT 9V 7A PCB Mount Sugar Cube Relay
The SPDT 9V 7A PCB Mount Sugar Cube Relay is designed for electronic switching applications. Its compact form factor optimizes space on printed circuit boards. It features a 9V DC coil and a 7A contact rating. The plastic-sealed construction provides protection against environmental factors. This relay is RoHS compliant. Through-hole mounting ensures secure installation on PCBs. It is suitable for various circuit control tasks.
Specifications:
- Coil Voltage (DC): 9 V
- Contact Arrangement: 1 Form C (SPDT)
- Contact Current Rating: 7 A
- Termination: PCB
- Construction: Plastic sealed
- Insulation Standard: Class B, Class F
- Mounting: PCB-THT
- Dielectric Strength (Coil & Contacts): 2500VAC 1min
- Operate Time: < 10ms
- Release Time: < 5ms
- Rated Voltage: 277V AC
- Size (LxWxH): 19 x 15.2 x 15.5 mm
Key features and benefits:
- High current contacts rated for 7A.
- RoHS compliant manufacturing.
- Compact size: 19 x 15.2 x 15.5 mm.
- Durable plastic-sealed construction.
- Single Pole Double Throw (SPDT) 1 Form C contact arrangement.
- Through-hole technology (THT) mounting.
- Dielectric strength: 2500VAC between coil and contacts.
Applications:
- Home automation systems and smart devices.
- Industrial control panels and machinery.
- Automotive electronics and accessory control.
- DIY electronics projects and prototyping.
- Power supply switching and load control.
- Security systems and access control.
Frequently Asked Questions:

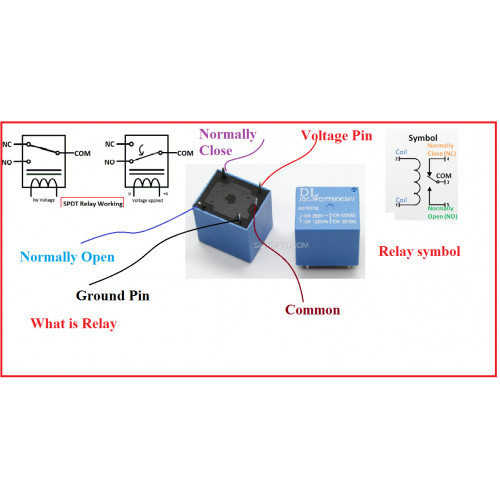

Q: What is the contact arrangement of this relay?
A: This relay features a Single Pole Double Throw (SPDT) 1 Form C contact arrangement.
Q: What is the maximum current rating for the contacts?
A: The contacts are rated for a maximum current of 7A.
Q: What are the dimensions of the 'sugar cube' relay?
A: The relay dimensions are 19 mm (length) x 15.2 mm (width) x 15.5 mm (height).
Package Includes:

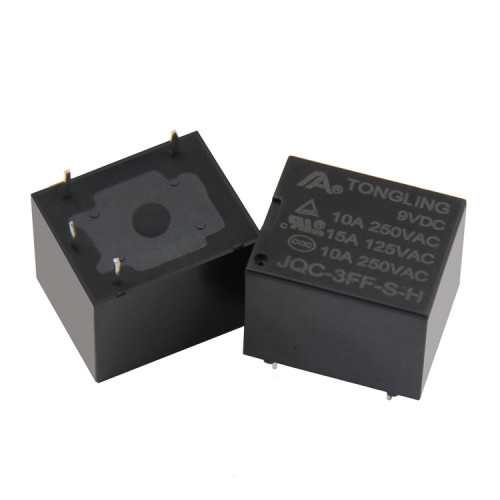

1x SPDT 9V 7A PCB Mount Relay (Sugar Cube Type).*Image shown is a representation only.
