Spdt 5V 5A Pcb mount Relay [Switch Voltage 270VAC @5A ) - Sugar Cube Relay
- Product Code: MR_SPDT5_5P
- Availability: In Stock
-
₹14.00 (+ GST)
- 10 or more quantity/sets : ₹13.50
- 25 or more quantity/sets : ₹12.50
- 100 or more quantity/sets : ₹11.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
SPDT 5V 5A PCB Relay
Features
- Low Coil Current Consumption
- High Current Contacts
- RoHS Compliant
- Compact Size
- Economically Priced
Specifications:
- Coil Voltage (DC): 5 V (Trigger Voltage)
- Coil Current: 70ma (Trigger Current)
- Contact Current Rating: 7 A (AC load - 7A and DC Load - 5A)
- Contact resistance: 100 mohm Max.(at 1A 6VDC)
- Contact material: AgSnO2
- Max. switching current: 7 A
- Max. switching voltage: 277VAC/30VDC
- Max. switching power: 2500VA/300W
- Insulation resistance: 1000 Mohm(at 500VDC)
- Operate time: < 10 ms
- Release time: < 5 ms
- Mechanical endurance: 10000000 ops
- Humidity: 5% to 85% RH
- Ambient temperature: -40~85 C
- Termination: PCB

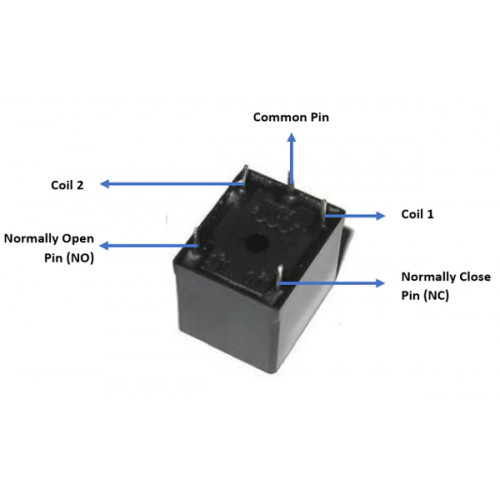

*Image shown is a representation only.
