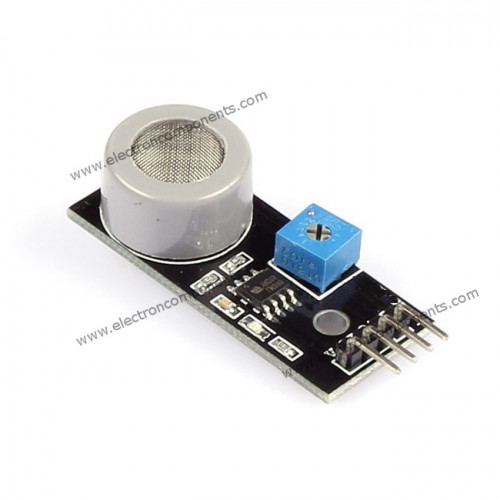

MQ7 Carbon Monoxide Gas Sensor Module
- Product Code: MSG-COG_mod
- Availability: Out Of Stock
-
₹253.39 (+ GST)
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
MQ7 Carbon Monoxide Gas Sensor Module
The MQ7 Carbon Monoxide (CO) Gas Sensor Module detects CO concentrations. It measures CO gas levels from 20 to 2000 parts per million (ppm). The module provides an analog resistance output. This output facilitates interfacing with microcontrollers via an Analog-to-Digital Converter (ADC). Operation requires a 5V heater coil and a load resistance. The sensor exhibits high sensitivity and rapid response characteristics. It is suitable for integration into electronic projects and systems. This module supports environmental sensing applications.
Specifications:
- Heater Voltage: 5 ±0.2V (AC or DC)
- Working Current: 140mA
- Loop Voltage: 10V (≤15V DC)
- Load Resistance: 10K (Adjustable)
- Detection Concentration: 20-2000ppm
- Sensitivity: ≥ 3%
- Response Time: ≤ 1S (Heater Time 3-5min)
- Recovery Time: ≤ 30S
- Power Consumption: ≤ 0.7W
- Working Temperature: -10~50℃
- Working Humidity: ≤ 95%RH
- Dimensions (L×W×H): 35mm × 22mm × 18mm
Key features and benefits:
- High sensitivity to Carbon Monoxide (CO) gas
- Detection range: 20 to 2000 ppm CO
- Fast response and recovery times
- Analog resistance output for ADC integration
- 5V heater coil operation (AC or DC)
- Compact dimensions: 35mm × 22mm × 18mm
- Low power consumption: ≤ 0.7W
- Operating temperature range: -10~50℃
Applications:
- Home and industrial CO leak detection systems
- Portable Carbon Monoxide detectors
- Air quality monitoring devices
- Smart home safety and environmental control systems
- Educational projects in electronics and environmental sensing
Frequently Asked Questions:
Q: What is the detection range of the MQ7 Carbon Monoxide sensor?
A: The MQ7 Carbon Monoxide Gas Sensor Module detects CO concentrations from 20 to 2000 parts per million (ppm).
Q: How is the MQ7 sensor integrated into a system?
A: The MQ7 sensor provides an analog resistance output, which can be connected to an Analog-to-Digital Converter (ADC) on a microcontroller for precise readings. It requires a 5V heater coil and a load resistance for operation.
Q: What are the primary applications for the MQ7 Carbon Monoxide sensor?
A: Primary applications include home and industrial CO leak detection systems, portable Carbon Monoxide detectors, air quality monitoring devices, and educational projects in environmental sensing.
Package Includes:
1x MQ7 Carbon Monoxide Gas Sensor Module.*Image shown is a representation only.
