2pcs: MOV-471K/14D (Metal Oxide Varistor) MOV471 14D [CNR 14D471K]

MOV-471K/14D Metal Oxide Varistor, 470V, 14mm Disc (2 Pcs)

The MOV-471K/14D is a Metal Oxide Varistor (MOV). It provides circuit protection against transient voltage surges and spikes. This 14mm disc varistor has a DC voltage rating of 470V. It features a fast response time. Peak surge current capability is 4.5kA (8/20µs). The component maintains consistent circuit voltage through its voltage ratio and stabilization properties. It absorbs transient voltage characteristics. Each package contains two MOV-471K/14D varistors.

Specifications:

• Product Name: MOV-471K/14D
• Varistor Type: Metal Oxide Varistor (MOV)
• Series: MOV-14D
• Varistor Voltage (V DC): 470V
• Clamping Voltage (Vc Max): 770V
• Peak Surge Current (8/20µs): 4.5kA
• Disc Diameter: 14mm
• Operating Temperature Range: -40°C to +85°C

Key features and benefits:

• Fast response time for surge protection
• Voltage ratio and circuit stabilization
• Absorption of transient voltage characteristics
• Bilateral and symmetrical V-I characteristics curve
• 4.5kA peak surge current capability (8/20µs)
• Operating temperature range: -40°C to +85°C

Applications:

• AC/DC power supplies and adapters
• Industrial control and automation systems
• Consumer electronics and home appliances
• Telecommunication and data line protection
• Motor control and relay circuits
• Surge Protection Devices (SPDs)

Frequently Asked Questions:

Q: What is the lead pitch for the 14mm disc MOV-471K/14D?
A: The lead pitch for a 14mm disc varistor typically ranges from 7.5mm to 10mm. Specific datasheet verification is recommended for the MOV-471K/14D.

Q: Can the MOV-471K/14D replace a 10mm disc varistor with a similar voltage rating?
A: The MOV-471K/14D is a 14mm disc varistor. Replacement of a 10mm disc varistor requires verifying physical fitment and lead spacing in the application.

Q: Is the MOV-471K/14D suitable for AC line voltage protection?
A: The MOV-471K/14D has a DC voltage rating of 470V. For AC line voltage protection, ensure the AC RMS voltage is within the varistor's specified AC voltage rating.

Package Includes:

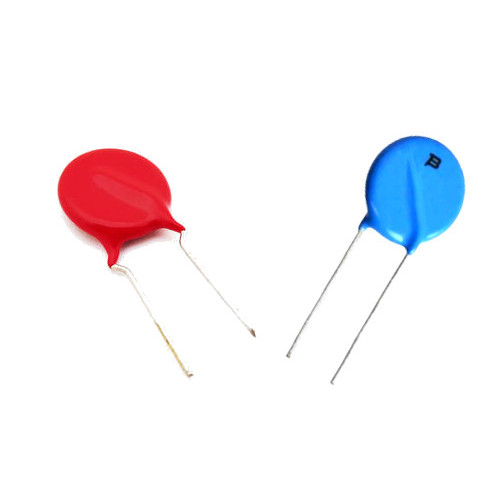

*Image shown is a representation only.
