10pcs : Red 5mm LED Diffused - Round DIP - EVERLIGHT (Original)

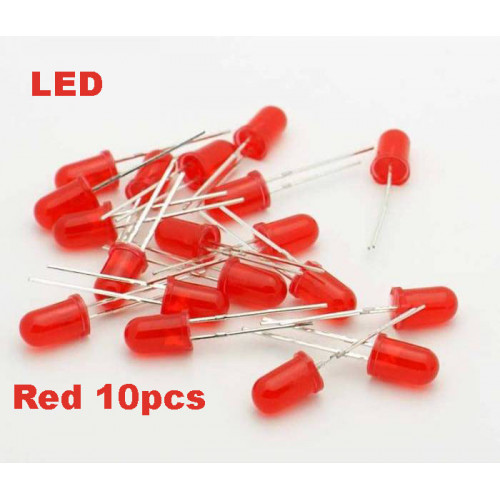

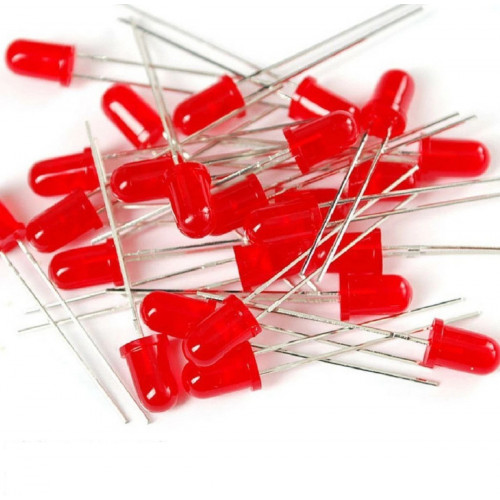

Red 5mm LED Diffused (pack of 10)

The Everlight 5mm Red Diffused LED in a round DIP package is designed for applications requiring bright red illumination. Encased in a diffused epoxy lens, this LED offers a wide viewing angle and is ideal for indicators, backlighting, and general-purpose lighting in electronic devices.

Key Features & Benefits:

• High Brightness: Delivers intense red light suitable for various applications.

• Low Power Consumption: Efficient design ensures minimal energy usage.

• Wide Viewing Angle: Diffused lens provides broad light dispersion.

• Compact 5mm Package: Standard size for easy integration into PCBs.

• RoHS Compliant: Environmentally friendly and lead-free.

Specifications:

• Brand: Everlight

• Package Type: 5mm Round (T-1 3/4)

• Lens Appearance: Diffused

• Color: Red

• Wavelength: 625 nm

• Forward Voltage: 1.7 – 2.1 V

• Forward Current: 20 mA

• Viewing Angle: Approximately 30°

• Luminous Intensity: 45 mcd

• Mounting Type: Through-Hole

• Operating Temperature Range: -40°C to +85°C

• Storage Temperature Range: -40°C to +100°C

Applications:

• Electronic indicators and status lights

• Backlighting for displays and panels

• DIY electronics and hobby projects

• Consumer electronics

• Automotive dashboard lighting

Package Includes:

• 10 x Everlight 5mm Red Diffused LED (Round DIP)

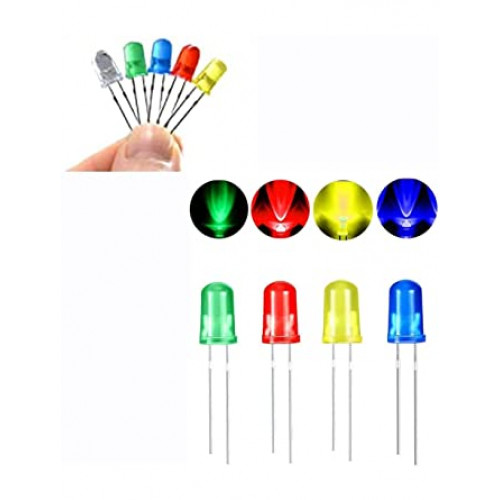

*Image shown is a representation only.
