3mm IR Transmitter & Receiver LED Pair [Rx - Equ. Phototransistor] - 1 set

IR Transmitter & Receiver -3mm

General Description

This 3mm IR Transmitter & Receiver pair is designed for a wide range of applications such as remote controls, distance sensors, object sensors, and line sensors. It can be easily connected to microcontrollers like Arduino or Raspberry Pi, requiring only a few current-limiting resistors for operation. This makes it ideal for use in projects requiring infrared communication with minimal setup.

Both the transmitter and receiver are tuned to work on the 940 nm wavelength, ensuring efficient and reliable infrared communication.

Key Features & Benefits:

• Energy Efficient: Low power consumption ensures long-lasting performance.

• Environmentally Friendly: Designed with sustainability in mind, requiring no complex components.

• Zero Maintenance: Built to operate for long durations without the need for frequent maintenance.

• High Reliability: Durable, ensuring consistent functionality across a variety of applications.

• Long Life Expectancy: Designed to work for 50,000 to 100,000 hours of operation.

• Low Forward Voltage: Consumes less power while delivering strong performance.

• Compact Size: The 3mm form factor is perfect for space-constrained applications.

• Easy Integration: Can be directly connected to microcontrollers like Arduino or Raspberry Pi with minimal wiring and components.

Transmitter Specifications (Tx):

• Wavelength: 940 nm

• Continuous Forward Voltage: 1.4V DC

• Peak Forward Current: 1A

• Reverse Voltage: 5V

• Operating Temperature: -40°C to 85°C

• Storage Temperature: -40°C to 100°C

• Soldering Temperature: 260°C

• Power Dissipation: 150mW

Receiver Specifications (Rx):

• Diameter: 3mm

• Power Dissipation: 100mW

• Reverse Voltage: 5V

• Forward Voltage: 1.2V - 1.3V

• Operating Temperature: -40°C to +100°C

• Peak Response Wavelength: 940 nm

• Lead Spacing: 2.54mm

Applications:

• Remote control systems

• Object and distance sensing

• Line-following robots

• Communication and data transfer between microcontrollers (Arduino, Raspberry Pi)

• General-purpose IR sensor applications

Package Includes:

• 1 x IR 3mm Transmitter LED

• 1 x IR 3mm Receiver LED

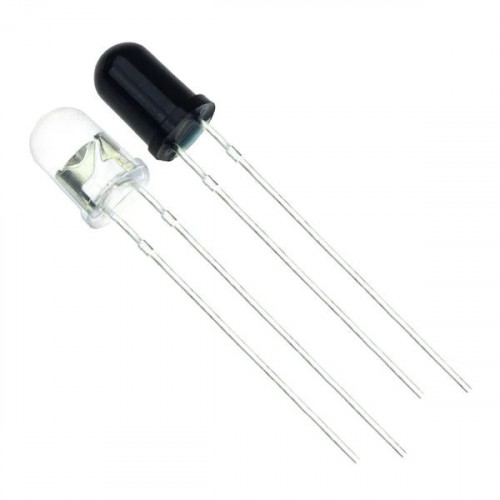

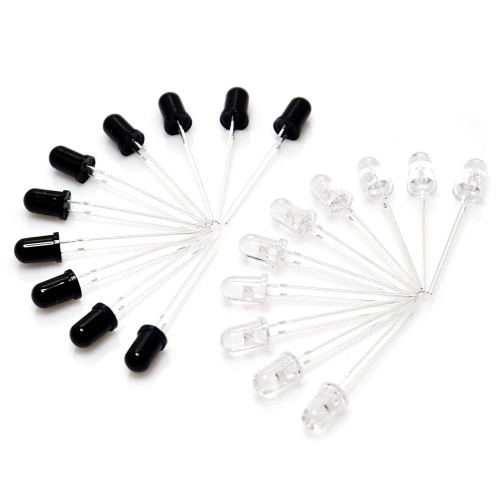

*Image shown is a representation only.
