Hall Effect BiPolar Sensor (WSH130/A3144 / AH44)
- Product Code: SP-HallWSH130
- Availability: Out Of Stock
-
₹24.00 (+ GST)
- 10 or more quantity/sets : ₹23.00
- 20 or more quantity/sets : ₹22.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
Hall Effect BiPolar Sensor (WSH130/A3144/AH44)
The Hall Effect BiPolar Sensor (WSH130/A3144/AH44) detects magnetic fields. It tracks changes in magnetic flux density. This component converts magnetic field changes into electrical signals. It provides precise monitoring capabilities. The sensor measures system performance with minimal circuit loading. Isolation from noisy environments enhances system stability. This supports critical sensing tasks.
Specifications:
- Model Numbers: WSH130/A3144/AH44
- Sensor Type: Hall Effect Bipolar Latching
- Operating Voltage: 4.5V - 24V DC
- Output Type: Open-Collector, Current Sinking
- Max Output Current: 25 mA
- Operating Temperature: -20°C to +85°C
- Package Type: TO-92
- Magnetic Polarity: Bipolar (North/South Pole detection)
- Supply Current: 5 mA (Typical)
Key features and benefits:
- Magnetic field sensitivity
- Bipolar latching operation
- Solid-state reliability
- Operating voltage range: 4.5V to 24V DC
- Open-collector, current sinking output
- Temperature stability
- Fast response time
- TO-92 package
Applications:
- Motion detection systems
- Gear tooth sensing for speed and position
- Proximity detection in industrial automation
- Brushless DC (BLDC) motor commutation
- Position sensing in robotics and control systems
- Speed measurement in various machinery
Frequently Asked Questions:
Q: What is the operating voltage range for the WSH130/A3144/AH44 sensor?
A: The Hall Effect BiPolar Sensor (WSH130/A3144/AH44) operates within a voltage range of 4.5V to 24V DC.
Q: What type of output does the WSH130/A3144/AH44 sensor provide?
A: The WSH130/A3144/AH44 sensor features an Open-Collector, Current Sinking output type.
Q: What is the magnetic polarity detection capability of this sensor?
A: The WSH130/A3144/AH44 sensor provides bipolar detection, responding to both North and South magnetic poles.
Q: What package type is the WSH130/A3144/AH44 sensor supplied in?
A: The WSH130/A3144/AH44 sensor is supplied in a TO-92 package.
Package Includes:

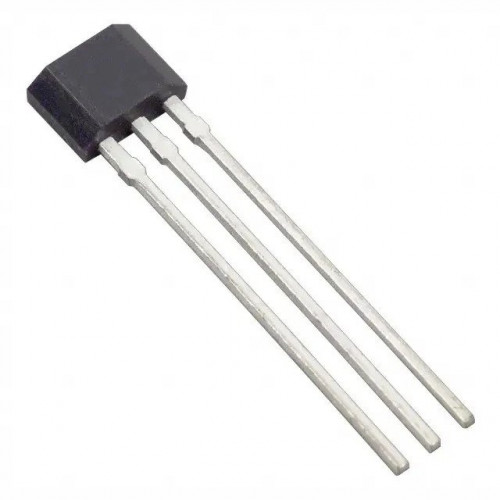

1 x Hall Effect BiPolar Sensor (WSH130/A3144/AH44).*Image shown is a representation only.
