H22A1 Slotted Opto Isolator Module (Encoder Sensor)

H22A1 Slotted Opto Isolator Module (Encoder Sensor)

The H22A1 Slotted Opto Isolator Module is a single-channel photo interrupt switch. It integrates an infrared emitting diode (IR LED) and an NPN silicon phototransistor. The module's polycarbonate housing establishes a precise optical path. This configuration enables the detection of object presence or absence. Interruption of the infrared beam by an object, such as an encoder disc, alters the phototransistor's output logic level. This mechanism facilitates position feedback and object sensing. The design prioritizes mechanical resolution, coupling efficiency, and ambient light rejection. It provides a component for electronic applications requiring optical switching and sensing.

Specifications:

• Model: H22A1
• Type: Slotted Opto Isolator / Photo Interrupt Switch
• Components: Infrared Emitting Diode (IR LED), NPN Silicon Phototransistor
• Gap Width: 3mm
• Channels: Single
• Housing Material: Polycarbonate
• Operating Temperature: -25°C to 85°C
• Function: Encoder Sensor, Optical Switch, Object Detection
• Output: Logic Level Change (when beam is interrupted)

Key features and benefits:

• High gain output.
• 3mm gap between IR LED and detector.
• Polycarbonate housing provides ambient light protection.
• Operating temperature range: -25°C to 85°C.
• Single-channel photo interrupt switch.
• Optimized for mechanical resolution and coupling efficiency.
• Provides position feedback and object sensing.

Applications:

• DC motor position and velocity control systems.
• Precision position and velocity servomechanisms.
• Robotics and factory automation equipment.
• Numerically controlled (NC) machinery.
• Computer printers, plotters, and facsimiles.
• Optoelectronic switching and limit switch applications.

Frequently Asked Questions:

Q: What is the optical gap width of the H22A1 module?
A: The H22A1 module features a 3mm optical gap between the IR LED and the phototransistor.

Q: What is the operating temperature range for the H22A1?
A: The H22A1 module operates within a temperature range of -25°C to 85°C.

Q: How does the H22A1 module mitigate ambient light interference?
A: The polycarbonate housing of the H22A1 module provides protection against ambient light interference.

Q: What type of output signal does the H22A1 module provide?
A: The H22A1 module provides a logic level change in its output when the infrared beam is interrupted.

Q: Can the H22A1 module be used for velocity control applications?
A: Yes, the H22A1 module is applicable in DC motor position and velocity control systems.

Package Includes:

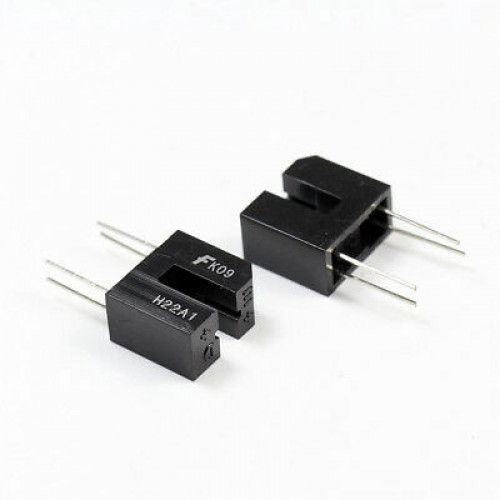

*Image shown is a representation only.
