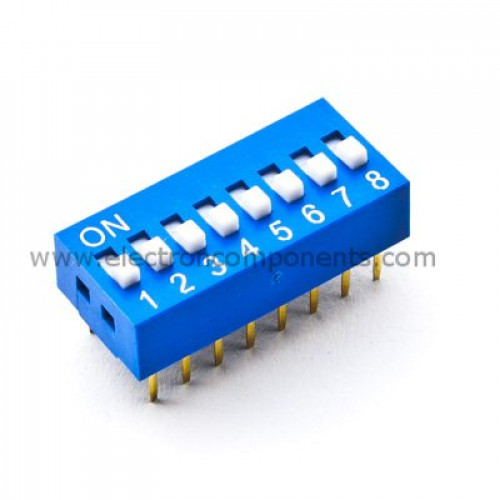

DIP Switch - 8 positions Slide Switch (Pitch : 2.54mm)
- Product Code: MSW-DIP8
- Availability: In Stock
-
₹22.00 (+ GST)
- 10 or more quantity/sets : ₹21.00
- 25 or more quantity/sets : ₹19.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
DIP Switch - 8 Positions Slide Switch (Pitch: 2.54mm)
This 8-position DIP slide switch provides configuration settings for electronic circuits. It features a 2.54mm pitch, ensuring compatibility with standard prototyping and PCB layouts. Each individual switch operates as a Single-Pole, Single-Throw (SPST) contact for binary control. Through-hole mounting secures the component to the circuit board. Pre-tinned leads are included to simplify the soldering process. The switch is rated for 30Vdc at 150mA, suitable for low-power applications. Its compact form factor supports integration into space-constrained designs. Common applications include device address setting, mode selection, and custom system configurations.
Specifications:
- Voltage Rating: 30V DC
- Operating Current: 0.15A
- Number of Positions: 8
- Pin Spacing: 2.54mm
- Mounting Type: Through Hole
- Operating Temperature: -40 to 85°C
- Switch Type: SPST
- Lifecycle: Approx. 2000 cycles
Key features and benefits:
- Through-Hole Mounting
- 8 Individual SPST Slide Switches
- Rated 30Vdc, 150mA
- 2.54mm (0.1 inch) Pin Pitch
- Numbered Contacts
- Pre-Tinned Leads
- Approx. 2000 cycles Mechanical & Electrical Lifecycle
Applications:
- Device address setting in electronic systems
- Mode selection in electronic circuits
- Configuration of embedded systems
- Prototyping and development boards
- Industrial control panels
- Custom circuit adjustments
Frequently Asked Questions:
Q: What is the pin pitch for this DIP switch?
A: The pin pitch for this 8-position DIP slide switch is 2.54mm (0.1 inch).
Q: What are the maximum voltage and current ratings for this switch?
A: This switch is rated for a maximum of 30V DC and an operating current of 0.15A.
Q: What mounting method does this DIP switch utilize?
A: This DIP switch is designed for through-hole mounting on printed circuit boards.
Package Includes:
1 x 8-Position DIP Slide Switch (2.54mm Pitch).*Image shown is a representation only.
