1 inch - 7-Segment Display Common Cathode (CC-R) - 1" [25.4mm] - RED
- Product Code: LED-7SD1I
- Availability: Out Of Stock
-
₹18.50 (+ GST)
- 10 or more quantity/sets : ₹17.50
- 25 or more quantity/sets : ₹17.00
- 50 or more quantity/sets : ₹16.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
1-Inch Red 7-Segment Common Cathode LED Display (25.4mm)
The 1-Inch Red 7-Segment Common Cathode LED Display (25.4mm) is designed for numerical data presentation. This module features a common cathode configuration, facilitating integration into various circuit designs. It provides a high-intensity red output, ensuring visibility across diverse lighting conditions. The display is RoHS compliant, adhering to environmental standards. It maintains consistent performance across a wide operating temperature range. The robust design supports operation from -25°C to +85°C. This display is suitable for digital indicators and multimedia products. Mounting is straightforward for integration into electronic systems.
Specifications:
- Light Color: Red
- DC Forward Current Per Segment: 30mA
- Reverse Voltage: 3V
- Operating Temperature: -25 to +85 deg C
- Storage Temperature: -30 to +85 deg C

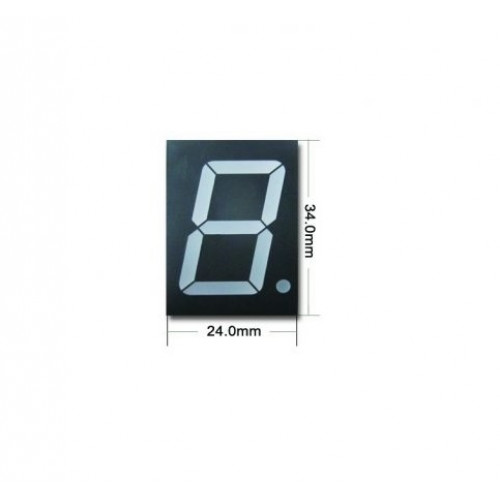

- Display Size: 1" (25.4mm)
- Display Type: 7-Segment Common Cathode
Key features and benefits:
- High-intensity red output
- 1-Inch (25.4mm) display size
- Common cathode configuration
- RoHS compliant
- Wide operating temperature range: -25°C to +85°C
- Designed for straightforward mounting
Applications:
- Audio equipment and instrument panels
- Digital indicators and multimedia products
- LED clock displays
- Bank exchange rate displays
- Gas station displays
Frequently Asked Questions:

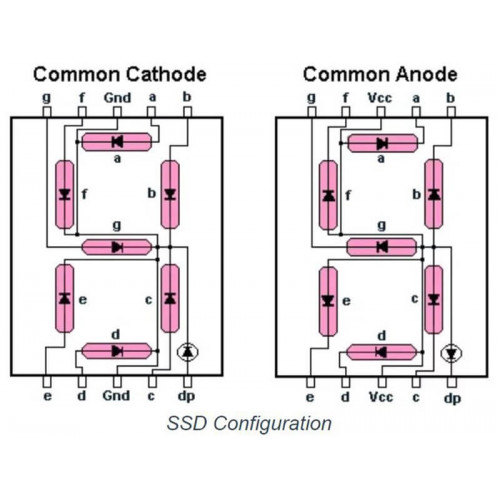

Q: What is a common cathode 7-segment display?
A: A common cathode 7-segment display has all the cathodes of its individual LEDs connected to a common pin, which is then connected to ground. To illuminate a segment, a positive voltage is applied to its anode.
Q: What is the DC forward current per segment for this display?
A: The DC forward current per segment for this display is 30mA.
Q: What is the operating temperature range for this 7-segment display?
A: The operating temperature range for this 7-segment display is -25 to +85 deg C.
Package Includes:
1x 1-Inch Red 7-Segment Common Cathode LED Display.*Image shown is a representation only.
