MJ15003 NPN Power Transistor + MJ15004 PNP Power Transistor (Original)

MJ15003 NPN & MJ15004 PNP Original Power Transistor Pair

Discover the original MJ15003 NPN and MJ15004 PNP Power Transistor pair, engineered for demanding high-power applications. These robust PowerBase transistors are ideal for audio amplifiers, ensuring clear and powerful sound reproduction. They are also perfectly suited for precise disk head positioners, offering reliable control. Beyond these, their linear application capabilities make them versatile components for various electronic designs. Each transistor boasts an impressive 250W power dissipation, handling significant loads with ease. With a 20A collector current and 140V collector-emitter voltage, they provide stable and efficient performance. This matched NPN/PNP pair simplifies design and ensures complementary operation. Upgrade your circuits with these high-performance, original components.

Specifications:

• Collector-Emitter Voltage (Vceo): 140V
• Collector-Base Voltage (Vcbo): 140V
• Collector Current (Ic): 20.0A
• DC Current Gain (hfe): 25-150 @ 5A
• Power Dissipation (Ptot): 250W
• Current-Gain-Bandwidth (ft): 2MHz
• Transistor Type (MJ15003): NPN
• Transistor Type (MJ15004): PNP

Key features and benefits:

• Original PowerBase design for authenticity and performance
• Matched NPN (MJ15003) and PNP (MJ15004) complementary pair
• High power dissipation of 250W for demanding loads
• Robust 20A collector current capability
• Designed for high-power audio and linear applications
• Excellent current-gain-bandwidth (2MHz)
• Ensures stable and reliable circuit operation

Applications:

• High-power audio amplifiers
• Disk head positioners
• General linear power applications
• Power supply regulation
• Motor control circuits

Package Includes:

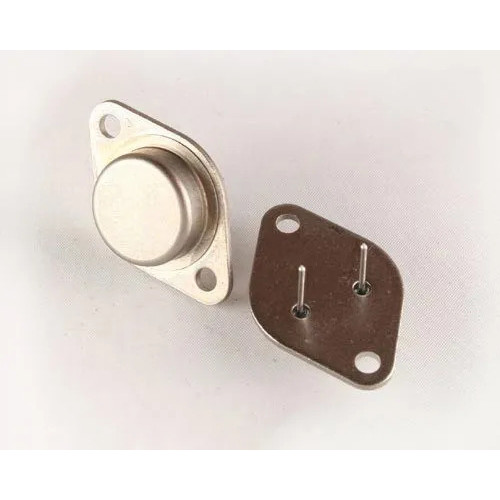

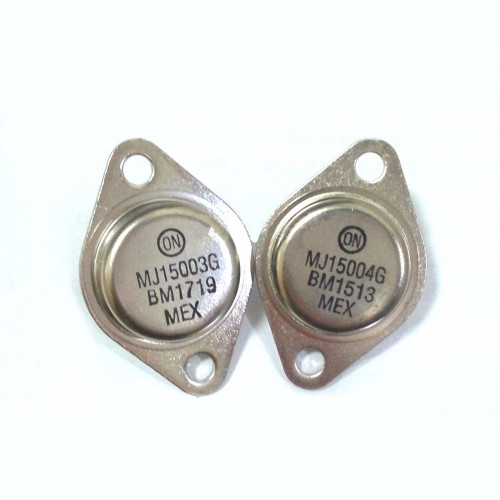

*Image shown is a representation only.
