LM7805-5V Positive Regulator [Original]

LM7805-5V Positive Regulator [Original]

Ex Tax: ₹10.59
  • 10 or more ₹11.95
  • 20 or more ₹11.75
  • 45 or more ₹10.90
  • 50 or more ₹10.70
Product Code: ICR_LM7805
Availability: In Stock


LM7805-5v Positive Voltage Regulator [High Quality]
International Shipping starts from 13 USD: DHL / Fedex (3-7 days priority delivery)

Product Description

LM7805-5v Positive Voltage Regulator [High Quality]
General Description
The LM7805 monolithic 3-terminal positive voltage regulators employ internal current-limiting, thermal shutdown and safe-area compensation, making them essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.0A output current. They are intended as fixed voltage regulators in a wide range of applications including local (on-card) regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents.
Considerable effort was expended to make the entire series of regulators easy to use and minimize the number of external components. It is not necessary to bypass the output, although this does improve transient response. Input bypassing is needed only if the regulator is located far from the filter capacitor of the power supply
  • Versatile, High-Accuracy, Fixed Voltage Regulators
  • Suitable for Currents up to 1A
  • Internal Thermal Overload Protection
  • Internal Short-Circuit Current Limit
  • Output Voltage Tolerance ±4%


RoHS Compliant -
Category : Linear Regulatr
Package Type : TO-220

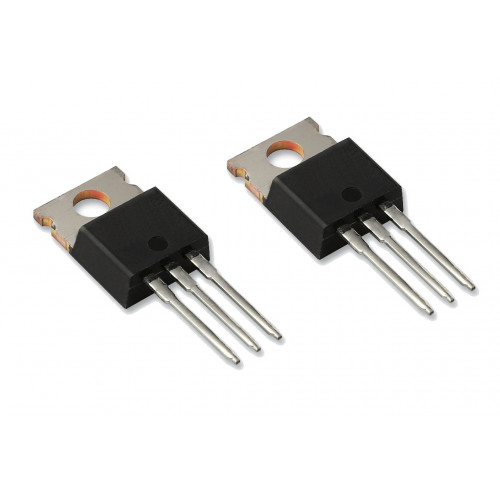

*Image shown is a representation only.
