LCD 16X1 Alphanumeric Display with Green Backlight (1601)
- Product Code: LCD-16X1G
- Availability: In Stock
-
₹150.00 (+ GST)
- 5 or more quantity/sets : ₹144.07
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

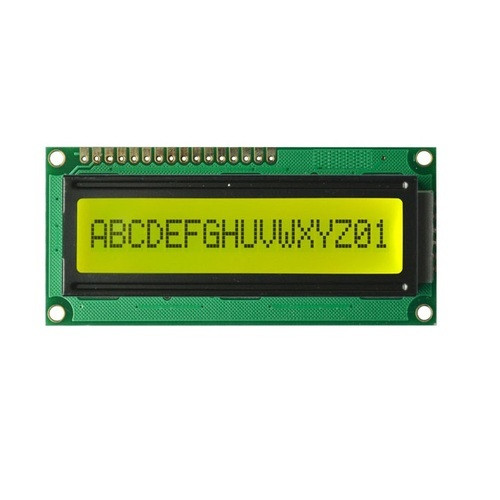

LCD 16x1 Alphanumeric Display with Green Backlight (1601)
The LCD 16x1 Alphanumeric Display (1601) is a module for embedded systems and electronics projects. It provides a 16-character by 1-line display format. The module incorporates an HD44780 compatible controller, supporting compatibility with microcontrollers such as Arduino, ESP32, and Raspberry Pi. It operates on a +5V DC power supply. A green backlight is included for visibility and can be switched. The display contrast is adjustable via Pin 3. This unit features a parallel (16-pin) interface.
Specifications:
- Display Format: 16 Characters x 1 Line
- Character Matrix: 5 x 7 Dots with Cursor
- Controller IC: Built-in HD44780 compatible
- Operating Voltage: +5V DC
- Backlight Color: Green
- Duty Cycle: 1/16
- Interface: Parallel (16-pin)
- Backlight Control: Switchable
- Contrast Control: Adjustable via Pin 3
Key features and benefits:
- 16 Characters x 1 Line display format
- Integrated HD44780 compatible controller
- Green LED backlight
- Adjustable contrast via Pin 3
- 5V DC operating voltage
- Parallel interface
- 5x7 dot matrix character display with cursor
- Low power consumption
Applications:
- Embedded system user interfaces
- DIY electronics projects and robotics
- Data logging and sensor readouts
- Industrial control panels and equipment
- Educational kits and prototyping
Frequently Asked Questions:
Q: What is the operating voltage for this LCD?
A: The LCD operates on a +5V DC power supply.
Q: Which controller IC is integrated into this display?
A: This display integrates an HD44780 compatible controller IC.
Q: What type of interface does this LCD use?
A: The LCD uses a 16-pin parallel interface.
Q: How is the display contrast adjusted?
A: Contrast is adjustable via Pin 3.
Q: Can the backlight be turned off?
A: Yes, the green backlight is switchable.
Package Includes:
1 x LCD 16X1 Alphanumeric Display with Green Backlight (1601).*Image shown is a representation only.
