PIC16F886 Flash 28-pin 20MHz 14kB Microcontroller

PIC16F886 Flash 28-pin 20MHz 14KB 8-bit Microcontroller

The PIC16F886 is a powerful yet easy-to-program 8-bit CMOS FLASH-based microcontroller, ideal for a wide range of embedded applications. Featuring a 28-pin package, it operates at speeds up to 20MHz and offers 14KB of Flash program memory. This MCU integrates 256 bytes of EEPROM data memory and supports self-programming. It boasts an 11-channel 10-bit Analog-to-Digital converter, two comparators, and robust communication interfaces like SPI, I²C, and EUSART. With advanced features such as an internal oscillator, power-saving modes, and multiple timers, the PIC16F886 delivers reliable performance. Its versatility makes it perfect for automotive, industrial, appliance, and consumer electronics designs requiring advanced A/D capabilities.

Specifications:

• Microcontroller Architecture: 8-bit CMOS FLASH
• Program Memory (Flash): 14KB
• Data EEPROM: 256 Bytes
• Max CPU Speed: 20MHz

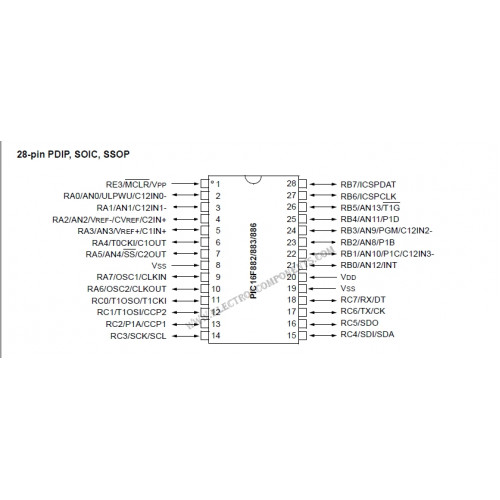

• Package Type: 28-pin
• A/D Converter: 11-channel, 10-bit
• Analog Comparators: 2
• I/O Pins: 25
• Instruction Set: 35 Single Word Instructions
• Serial Communication: SPI, I²C, EUSART (RS-485, RS-232, LIN)
• Timers: 3 (TMR0, TMR1, TMR2)
• Internal Oscillator: 8 MHz to 32 kHz (Software Selectable)

Key features and benefits:

• 8-bit CMOS FLASH-based architecture with 14KB program memory
• High-speed operation up to 20MHz with a 28-pin package
• Integrated 11-channel, 10-bit Analog-to-Digital Converter (A/D)
• Versatile communication: SPI, I²C, and Enhanced Universal Asynchronous Receiver Transmitter (EUSART)
• Precision Internal Oscillator (8 MHz to 32 kHz) with software control
• Advanced power management: Power-Saving Sleep mode, ULPWU, POR, BOR
• In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD) support
• High-endurance Flash/EEPROM memory with self-reprogrammable capability

Applications:

• Automotive control systems and diagnostics
• Industrial automation and process control
• Home appliances and consumer electronics
• Advanced Analog-to-Digital (A/D) data acquisition
• Embedded systems requiring robust communication

Package Includes:

*Image shown is a representation only.
