Microchip PIC16F77 8-bit Flash Microcontroller

The Microchip PIC16F77 is a robust 8-bit Flash microcontroller designed for a wide range of embedded applications. This 40-pin device features 8KB of programmable Flash memory and operates at speeds up to 8MHz with its internal oscillator. It integrates essential peripherals including a 10-bit, 14-channel Analog-to-Digital Converter (ADC) and three 10-bit PWM modules. Communication is streamlined with built-in SSP (SPI/I²C) and AUSART support. Engineered for efficiency, it includes low-power features like Power-Saving Sleep Mode and a Fail-Safe Clock Monitor. The PIC16F77 offers a reliable and cost-effective solution for your next project, from industrial control to consumer electronics. Its comprehensive feature set makes it ideal for both hobbyists and professional developers seeking a versatile MCU.

Specifications:

• Part Number: PIC16F77
• Manufacturer: Microchip
• Package Type: 40-pin
• Program Memory Type: Flash
• Flash Program Memory: 8192 bytes (8KB)
• SRAM Data Memory: 368 bytes
• CPU Speed: 8MHz (Internal Oscillator)
• I/O Pins: 36
• Timers: Two 8-bit, One 16-bit
• A/D Converter: 10-bit, 14-channel
• PWM Modules: Three 10-bit
• Communication Interfaces: SSP (SPI, I²C), AUSART

Key features and benefits:

• 8KB Flash Program Memory and 368 bytes SRAM Data Memory
• Integrated 10-bit, 14-channel Analog-to-Digital Converter (ADC)
• Three 10-bit Pulse Width Modulation (PWM) modules
• Master Synchronous Serial Port (MSSP) supporting SPI and I²C communication
• Two 8-bit and one 16-bit Timers for precise timing and counting
• Robust special features: Fail-Safe Clock Monitor, Power-On Reset, Code Protection
• Advanced low-power modes including Power-Saving Sleep Mode
• Multiple oscillator options: Crystal (LP, XT, HS), RC, ECIO

Applications:

• Embedded control systems and automation
• Data acquisition and sensor interfacing
• Consumer electronics and home appliances
• Robotics and mechatronics projects
• Industrial monitoring and control
• Educational and prototyping platforms

Package Includes:

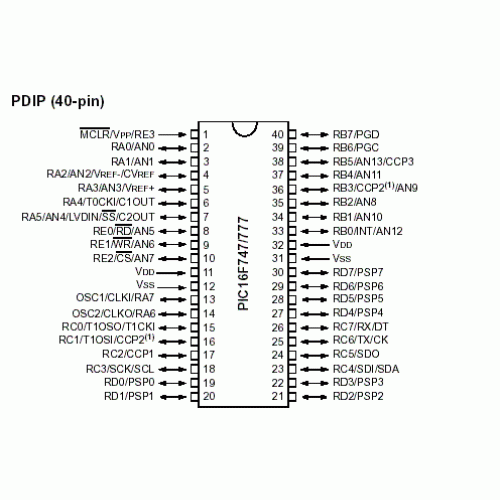

*Image shown is a representation only.
