SMD 74HC244D - 653 – 6V 3-state Octal Buffer/line Driver 20-Pin SOIC – [Original]

SMD 74HC244D 6V 3-State Octal Buffer/Line Driver 20-Pin SOIC

The 74HC244D is a high-performance 3-state octal buffer/line driver, part of the popular 74HC series. Designed for surface mount applications, it comes in a compact 20-pin SOIC package. This versatile IC can function as two 4-bit buffers or a single 8-bit buffer, offering flexibility in circuit design. It features 3-state outputs, allowing for efficient bus interfacing and multiplexing. Two independent output enables (1OE and 2OE) provide precise control over the output states. With a wide operating voltage range up to 6V, it's suitable for various digital logic systems. Integrated clamp diodes enhance input protection, enabling safe interfacing with higher voltages using current limiting resistors. This non-inverting buffer is an essential component for signal conditioning and data transmission.

Specifications:

• Number of Pins: 20
• Mount: Surface Mount
• Case/Package: SOIC
• Logic Function: Buffer, Non-Inverting
• Max Operating Temperature: 125 C
• Min Supply Voltage: 2 V
• Number of Channels: 8
• Max Supply Voltage: 6 V
• Min Operating Temperature: -40 C
• Number of Inputs: 8
• Number of Outputs: 8
• RoHS: Compliant

Key features and benefits:

• 8-bit buffer/line driver with 3-state outputs
• Can be configured as two 4-bit or one 8-bit buffer
• Two independent output enables (1OE and 2OE)
• Wide supply voltage range: 2V to 6V
• Inputs include clamp diodes for enhanced protection
• Surface Mount Device (SMD) in a 20-pin SOIC package
• Non-inverting logic function
• RoHS Compliant

Applications:

• High-speed data bus interfacing
• Memory address drivers
• Line driving and signal buffering
• Digital logic level shifting
• Microcontroller peripheral interfacing
• Data multiplexing and demultiplexing

Package Includes:

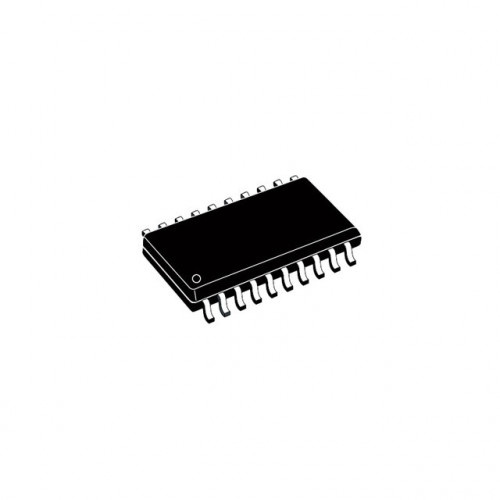

*Image shown is a representation only.
