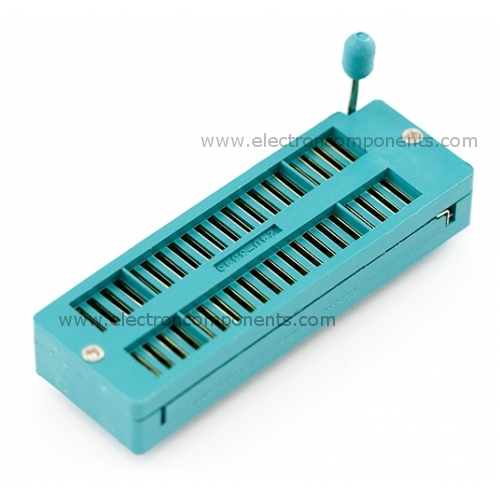

40 Pin ZIF Socket/Base [High Quality]
- Product Code: ICS_40pinZIF
- Availability: In Stock
-
₹69.00 (+ GST)
- 5 or more quantity/sets : ₹67.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
40 Pin ZIF Socket/Base for IC Programming and Testing
The 40 Pin ZIF Socket/Base is designed for IC programming and testing. It incorporates a Zero Insertion Force (ZIF) mechanism. This mechanism facilitates the insertion and removal of ICs without applying force, thereby preventing damage to sensitive pins during repeated operations. The socket provides reliable contact and stable connections, which is critical for accurate data transfer. A lever lock mechanism secures the IC during programming cycles. This component supports ICs with up to 40 pins. Constructed from durable materials, the socket maintains long-term reliability. It is RoHS compliant.
Specifications:
- Pin Count: 40
- Socket Type: ZIF (Zero Insertion Force)
- IC Compatibility: Up to 40 Pin
- Contact Resistance: Low
- Locking Mechanism: Lever Actuated
- Compliance: RoHS
- Intended Use: Programming & Testing
- Material: Durable Plastic & Metal
Key features and benefits:
- Zero Insertion Force (ZIF) mechanism for IC insertion and removal
- Prevents IC pin bending or damage during repeated use
- Low contact resistance for reliable and stable electrical connections
- Lever-actuated locking mechanism for IC retention during operation
- Compatible with integrated circuits up to 40 pins
- Durable construction for extended operational lifespan
- RoHS compliant
Applications:
- Device programming
- IC test rigs and prototyping
- Electronics development
- Educational projects
- Quality control and testing
Frequently Asked Questions:
Q: What is the maximum pin count supported by this ZIF socket?
A: This ZIF socket supports integrated circuits with a maximum pin count of 40 pins.
Q: How does the ZIF mechanism protect integrated circuits?
A: The ZIF mechanism protects integrated circuits by eliminating the need for force during insertion and removal, thereby preventing bending or damage to the delicate pins of the IC.
Package Includes:
1x 40 Pin ZIF Socket/Base.*Image shown is a representation only.
