24 Pin (WIDE) - DIP IC Socket/Base WIDE (DIP-24pin)
- Product Code: ICS_24pinW
- Availability: In Stock
-
₹4.24 (+ GST)
- 5 or more quantity/sets : ₹4.03
- 10 or more quantity/sets : ₹3.81
- 50 or more quantity/sets : ₹3.39
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

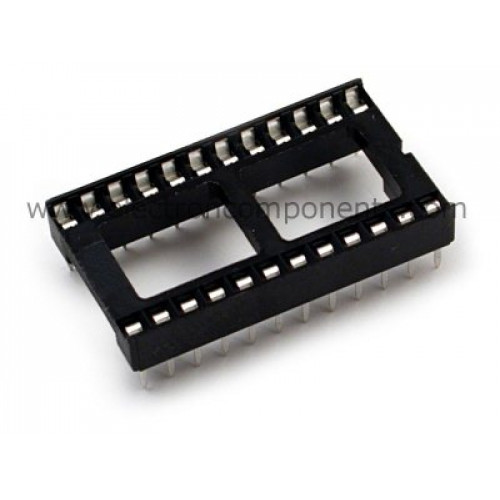

24 Pin WIDE DIP IC Socket/Base for DIP-24pin ICs
The 24 Pin WIDE DIP IC Socket/Base accommodates DIP-24pin Integrated Circuits. It provides protection for DIP-24pin ICs. This socket prevents thermal damage during soldering processes. It simplifies circuit testing, allowing quick IC insertion and removal. Construction uses black thermoplastic, contributing to durability. Tin-plated alloy contacts provide electrical connections. A notch aids in correct IC orientation. These sockets mount end-to-end for longer IC configurations.
Specifications:
- Pin Count: 24 Pins
- Package Type: DIP (Dual In-line Package) WIDE
- Body Material: Black Thermoplastic
- Contact Material: Tin-plated Alloy
- Height Above PCB: 4.8mm
- Recommended PCB Hole Diameter: 0.6mm
- Orientation Feature: Notched End
- Mounting Type: Through-hole
Key features and benefits:
- Accommodates 24-pin WIDE Dual In-line Package (DIP) ICs.
- Protects ICs from thermal damage during soldering.
- Facilitates IC insertion and removal for testing and prototyping.
- Constructed from black thermoplastic.
- Includes tin-plated alloy contacts for electrical connections.
- Notched end for IC orientation.
- Supports end-to-end mounting for extended IC configurations.
Applications:
- Prototyping and breadboarding electronic circuits.
- Testing and debugging Integrated Circuits without permanent soldering.
- Protection for ICs in permanent installations.
- Educational electronics projects and hobbyist builds.
- Repair and maintenance requiring IC replacement.
Frequently Asked Questions:
Q: What is the recommended PCB hole diameter for this socket?
A: The recommended PCB hole diameter is 0.6mm.
Q: Can this socket be used with standard 24-pin DIP ICs?
A: This socket is specifically for WIDE DIP-24pin ICs.
Q: How is correct IC orientation indicated on the socket?
A: A notched end on the socket indicates correct IC orientation.
Q: What is the height of the socket above the PCB?
A: The height above the PCB is 4.8mm.
Q: Can multiple sockets be connected for longer IC configurations?
A: Yes, the modular design supports end-to-end mounting for extended IC configurations.
Package Includes:
1 x 24 Pin WIDE DIP IC Socket/Base.*Image shown is a representation only.
