10pcs: FR107 Fast Recovery Diode (DO-41) [Original]

FR107 Fast Recovery Diode (DO-41) - 1A, 1000V, 500ns Trr Rectifier (10 Pcs)

The FR107 Fast Recovery Diode is a rectifier component designed for AC to DC power conversion. It features a 1 Ampere average rectified current capability. The diode has a Peak Inverse Voltage (PIV) rating of 1000 Volts. Its reverse recovery time is 500ns. The FR107 is supplied in a compact DO-41 package. This package provides a high current-to-size ratio. The diode exhibits a low forward voltage drop of 1.3V. It also offers high surge current capability. These diodes are provided in packs of 10 units.

Specifications:

• Diode Type: Fast Recovery Rectifier
• Package Type: DO-41
• Peak Repetitive Reverse Voltage (VRRM): 1000 V
• Max. RMS Reverse Voltage (VRMS): 700 V
• Average Rectified Current (Io): 1.0 A
• Max. Reverse Current (IR): 0.005 mA
• Max. Forward Voltage Drop (VF): 1.3 V
• Reverse Recovery Time (Trr): 500 ns

Key features and benefits:

• 1A average rectified current capability
• Peak Inverse Voltage (PIV): 1000V
• Reverse recovery time (Trr): 500ns
• Low forward voltage drop: 1.3V
• High surge current capability
• Compact DO-41 package
• Void-free plastic package construction

Applications:

• AC to DC power supplies
• Switching power supplies (SMPS)
• Inverters and converters
• Freewheeling diodes
• General purpose rectification

Frequently Asked Questions:

Q: What is the primary function of the FR107 diode?
A: The FR107 Fast Recovery Diode functions as a rectifier, converting alternating current (AC) into direct current (DC).

Q: What are the key electrical ratings of the FR107 diode?
A: The FR107 diode has an average rectified current of 1.0 A, a Peak Inverse Voltage (PIV) of 1000 V, and a reverse recovery time (Trr) of 500 ns.

Q: In what package is the FR107 diode supplied?
A: The FR107 Fast Recovery Diode is supplied in a DO-41 axial-leaded package.

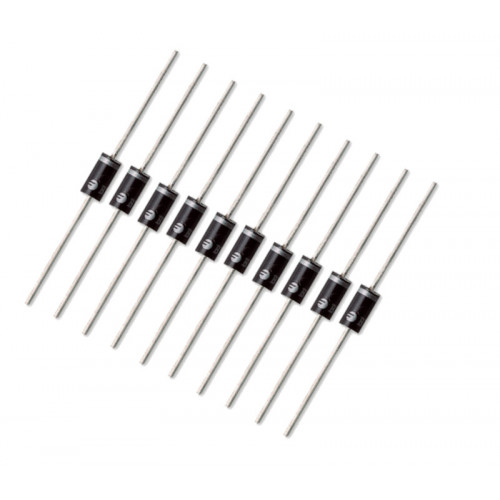

Package Includes:

*Image shown is a representation only.
