BTA41-600 - 40A 600V triac - bta41600-TOP3
- Product Code: MD_ST_BTA41
- Availability: In Stock
-
₹35.00 (+ GST)
- 10 or more quantity/sets : ₹33.00
- 50 or more quantity/sets : ₹30.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
BTA41-600 40A 600V TRIAC - High Power AC Switching Component (TOP-3)
The BTA41-600 is a 40A 600V TRIAC. It is designed for general purpose AC power switching applications. This component is part of the BTA/BTB40-41 series. It supports both ON/OFF functions and phase control operations. The clip assembly technique provides surge current handling capabilities. An internal ceramic pad offers a voltage insulated tab rated at 2500 V RMS. This insulation complies with UL standards. The component is suitable for integration into industrial and consumer electronics.
Specifications:
- Peak Off-State Voltage (Vdrm): 600V
- On-State Current (It): 40.0A
- Gate Turn-On Voltage (Vgt): 1.3V
- Gate Current (Igt): 50mA
- Average Gate Power Dissipation (Pg): 1W
- Typical Voltage Change over Time (dV/dT): 500V/µs
- Insulation Voltage: 2500V RMS
- Package Type: TOP-3
Key features and benefits:
- High current rating: 40A On-State Current (It)
- High voltage rating: 600V Peak Off-State Voltage (Vdrm)
- Surge current handling via clip assembly
- 2500V RMS voltage insulated tab (UL compliant)
- Supports ON/OFF and phase control operations
- Low Gate Turn-On Voltage (Vgt): 1.3V
- Durable TOP-3 package
Applications:
- Static relays and heating regulation systems
- Water heaters and induction motor starting circuits
- Welding equipment power control
- High power motor speed controllers
- Soft start circuits for various loads
Frequently Asked Questions:
Q: What is the package type of the BTA41-600 TRIAC?
A: The BTA41-600 is supplied in a TOP-3 package.
Q: Can the BTA41-600 be used for both ON/OFF and phase control?
A: Yes, this TRIAC is suitable for both ON/OFF functions and precise phase control operations.
Q: What is the insulation voltage rating for the BTA41-600?
A: The BTA41-600 features a voltage insulated tab rated at 2500 V RMS, compliant with UL standards.
Q: What is the maximum continuous on-state current for this TRIAC?
A: The maximum continuous on-state current (It) for the BTA41-600 is 40.0A.
Package Includes:

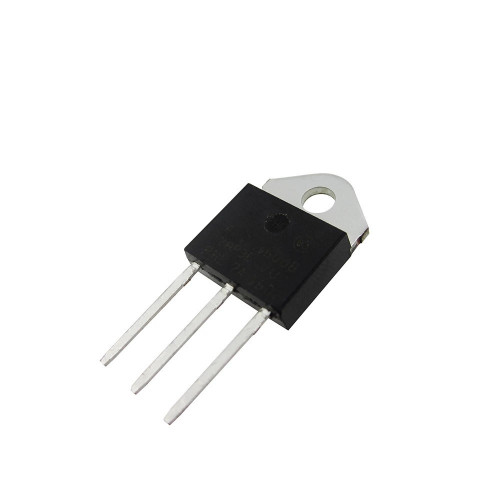

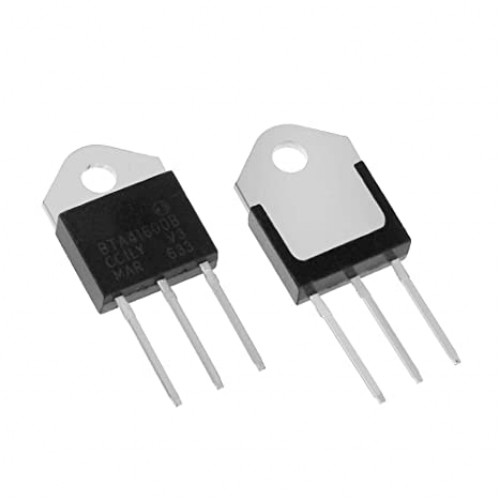

1 x BTA41-600 40A 600V TRIAC (TOP-3).*Image shown is a representation only.
