DPDT on-off-on Rocker Switch (16A) 250V AC - 6pin
- Product Code: MSW-DPDTR_NFN
- Availability: In Stock
-
₹27.00 (+ GST)
- 10 or more quantity/sets : ₹26.50
- 25 or more quantity/sets : ₹25.50
- 50 or more quantity/sets : ₹25.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

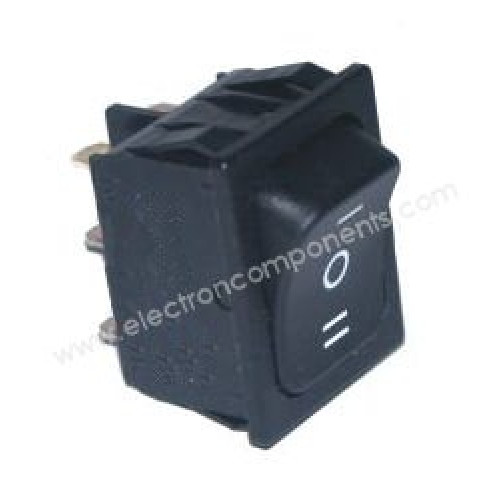

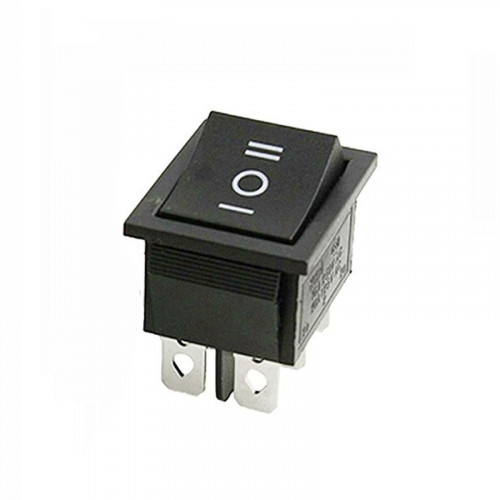

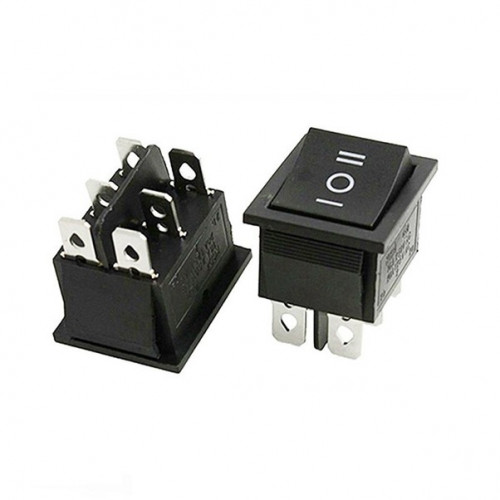

DPDT On-Off-On Rocker Switch (16A 250V AC) - 6-Pin Panel Mount
This DPDT On-Off-On Rocker Switch provides power control for electrical circuits. The component is rated for 16A at 250V AC. It features a 6-pin configuration and three-position (ON-OFF-ON) functionality. Panel mounting is facilitated by secure tabs, allowing tool-free installation. Positions are clearly marked for operational clarity. Construction utilizes durable plastic and metal materials. This switch is a mini component for various control systems.
Specifications:
- Switch Type: Rocker Switch
- Configuration: DPDT (Double Pole Double Throw)
- Positions: On-Off-On (3-position)
- Current Rating: 16A
- Voltage Rating: 250V AC
- Number of Pins: 6
- Mounting Type: Panel Mount (with secure tabs)
- Material: Plastic, Metal
- Primary Function: Power Control, Circuit Management
Key features and benefits:
- DPDT (Double Pole Double Throw) configuration
- Three-position (ON-OFF-ON) functionality
- 16A at 250V AC rating
- 6-pin terminal design
- Panel mounting with secure tabs
- Clearly marked switch positions
- Durable plastic and metal construction
- Mini component form factor
Applications:
- Industrial control panels
- Automotive electrical systems
- Home appliance repair and upgrades
- DIY electronics projects
- HVAC systems
- Marine applications
Frequently Asked Questions:
Q: How is this DPDT rocker switch mounted?
A: This switch is designed for panel mounting and includes secure tabs for tool-free installation.
Q: What is the current and voltage rating of this switch?
A: The switch is rated for 16A at 250V AC.
Q: What does "DPDT On-Off-On" configuration mean?
A: DPDT (Double Pole Double Throw) indicates two independent circuits can be controlled. "On-Off-On" refers to its three stable positions, allowing connection to one set of terminals, disconnection, or connection to another set of terminals.
Q: Can this 6-pin switch be used in a 12V DC automotive application?
A: The switch is rated for 250V AC. While it may operate with 12V DC, its specified performance is for AC circuits. Verify DC load compatibility for your specific application.
Q: Are the switch positions clearly marked?
A: Yes, the switch positions are clearly marked on the component.
Package Includes:
1 x DPDT On-Off-On Rocker Switch (16A 250V AC) - 6 Pin.*Image shown is a representation only.
