DIP Switch - 2 positions Slide Switch (Pitch 2.54mm)

2-Position DIP Slide Switch with 2.54mm Pitch

This 2-position DIP slide switch is an essential component for various electronic circuit configurations. It allows for easy manual setting of logic states or device parameters. Featuring a standard 2.54mm pitch, it's compatible with breadboards and standard PCBs. Each switch is an SPST (Single-Pole, Single-Throw) type, ensuring reliable on/off control. The robust design supports through-hole mounting for secure integration. Pre-tinned leads simplify soldering, making installation quick and efficient. Its compact form factor makes it suitable for space-constrained applications. This switch is perfect for hobbyists and professionals alike.

Specifications:

• Voltage Rating: 30V DC
• Operating Current: 0.15A
• Number of Positions: 2
• Pin Spacing: 2.54mm
• Mounting Type: Through Hole
• Operating Temperature: -40°C to 85°C
• Mechanical & Electrical Lifecycle: Approx. 2,000 cycles
• Switch Rating: 50V DC @ 100mA
• Switch Type: SPST
• Color: Random (Red or Blue)

Key features and benefits:

• Standard through-hole mounting for secure PCB integration.
• SPST (Single-Pole, Single-Throw) switch configuration for simple on/off control.
• High switch rating: 50V DC @ 100mA, suitable for various low-power applications.
• Clearly numbered contacts for easy identification and wiring.
• Pre-tinned leads ensure quick and reliable soldering.
• Compact 2-position design for precise configuration.
• Available in random colors (Red or Blue) for visual distinction.

Applications:

• Setting device addresses or configuration options.
• Controlling logic states in digital circuits.
• Prototyping on breadboards and custom PCBs.
• Selecting operating modes in embedded systems.
• Adjusting parameters in industrial control panels.

Package Includes:

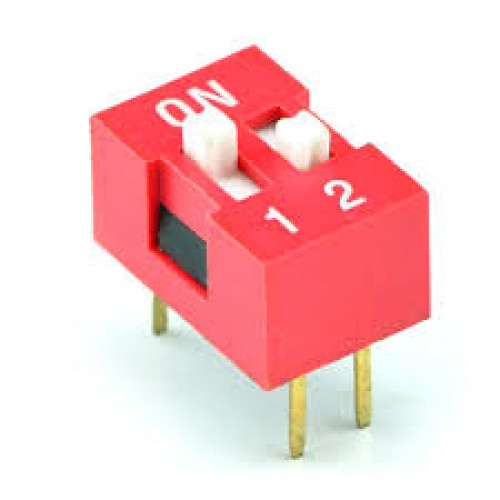

*Image shown is a representation only.
