DC Socket Female Connector round Chassis 2.1 x 5.5mm / Panel Mounting with nut

DC Socket Female Connector 2.1 x 5.5mm Panel/Chassis Mount with Nut

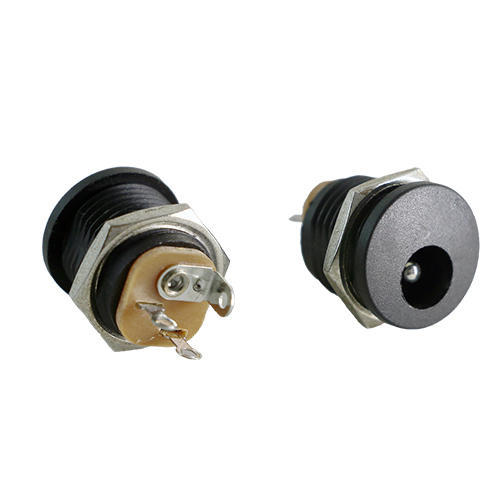

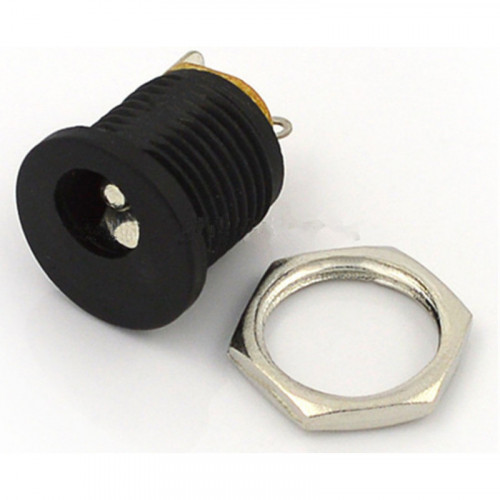

The DC Socket Female Connector provides power input for electronic devices. It is designed for panel or chassis mounting, facilitating secure power connections. The connector features a 2.1 x 5.5mm jack, compatible with standard power adapters. A hexagonal nut is included for secure installation into various enclosures. This component accommodates panel thicknesses up to 8mm. It incorporates an integral break switch on the outer contact. The connector is rated for 1A current and 12V voltage. Its construction supports long-term operational performance.

Specifications:

• Connector Type: DC Socket Female

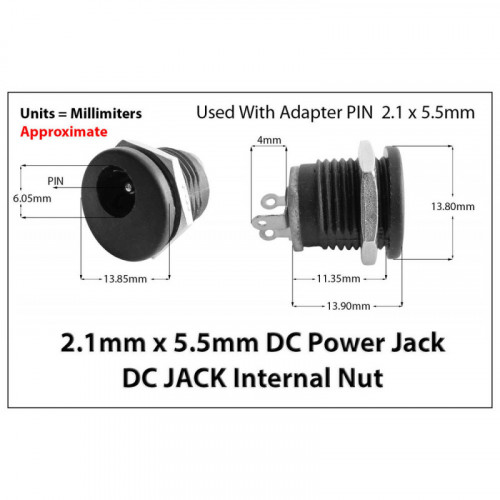

• Jack Dimensions: 2.1mm (Internal) x 5.5mm (External)
• Mounting Type: Panel / Chassis Mount
• Fixing Method: Single-hole with Hexagonal Nut
• Max Panel Thickness: 8mm
• Panel Cut-out Diameter: 12.6mm
• Current Rating: 1A
• Voltage Rating: 12V
• Overall Bezel Diameter: 14.8mm
• Overall Length: 18mm
• Switch Feature: Integral Break Switch on Outer Contact

Key features and benefits:

• Standard 2.1 x 5.5mm DC jack with center pole.
• Designed for flush panel or chassis mounting.
• Includes a hexagonal fixing nut for secure installation.
• Features an integral break switch on the outer contact.
• Accommodates panel thicknesses up to 8mm.
• Constructed for reliable and long-lasting performance.
• Compatible with 12V and 9V power adapters.

Applications:

• DIY electronics projects and prototypes.
• Custom power supply units and enclosures.
• Robotics, automation, and embedded systems.
• Repair or upgrade of existing electronic devices.
• Educational kits and hobbyist applications.

Frequently Asked Questions:

Q: What are the dimensions of the DC jack?
A: The DC jack dimensions are 2.1mm (internal) x 5.5mm (external).

Q: What is the maximum panel thickness this connector can accommodate?
A: This connector accommodates a maximum panel thickness of 8mm.

Q: Does this connector include a switch feature?
A: Yes, it features an integral break switch on the outer contact.

Package Includes:

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
