Soil Moisture Sensor Module

Product Code: SP-SMSM
Availability: In Stock

₹31.50 (+ GST)
10 or more quantity/sets : ₹31.25
25 or more quantity/sets : ₹30.90

Qty

Shipping Charges Start from Rs.49*
Fast Order Processing <24hr
Shipment using reputed courier with 90% delivery in 1 - 3 working days
All order with GST invoice (B2B: 100% cliam GST credit input tax)

Description
Reviews (0)

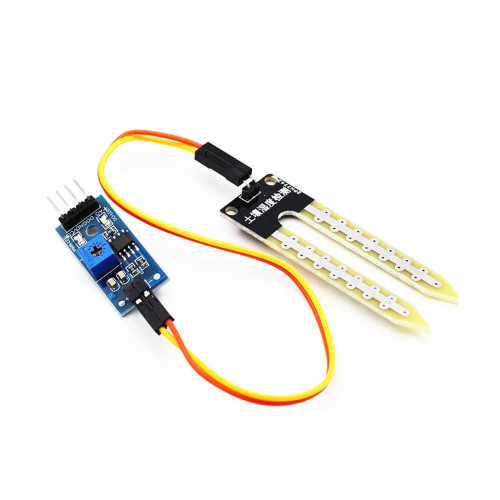

Soil Moisture Sensor Module with Digital & Analog Output

Discover the versatile Soil Moisture Sensor Module, an essential component for any smart gardening or environmental monitoring project. This easy-to-use sensor accurately measures the water content in soil, providing both digital and analog outputs. Its digital output offers a simple high/low indication based on a user-adjustable threshold, perfect for triggering pumps or alerts. For more precise data, the analog output provides continuous moisture level readings, ideal for ADC integration with microcontrollers like Arduino or Raspberry Pi. Equipped with an LM393 comparator chip, it ensures stable and reliable performance. Installation is straightforward thanks to its fixed bolt hole design. Power and output indicators offer clear visual feedback on its operational status. Whether you're building an automated irrigation system or a plant health monitor, this module is a robust solution.

Specifications:

Operating Voltage: 3.3V~5V
Output Mode: Dual (Digital & Analog)
Comparator Chip: LM393
Indicators: Power (Red), Digital Output (Green)
Digital Output Interface: DO (0 or 1)
Analog Output Interface: AO
Panel PCB Dimension: Approx. 3cm x 1.5cm
Soil Probe Dimension: Approx. 6cm x 3cm
Cable Length: Approx. 21cm

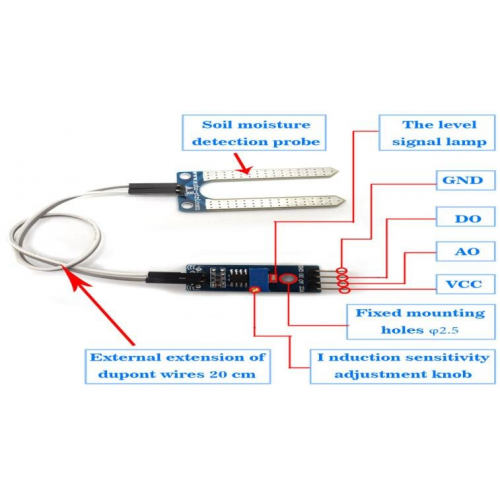

Pin Connections: VCC (3.3V-5V), GND, DO, AO

Key features and benefits:

Dual output mode: Digital (0/1) and Analog (precise readings)
Adjustable moisture threshold via potentiometer
Integrated LM393 comparator chip for stable operation
Power (red) and digital output (green) LED indicators
Easy installation with fixed bolt hole
Wide operating voltage range: 3.3V to 5V
Compact design with separate probe and PCB

Applications:

Automated plant watering systems
Smart gardening and hydroponics projects
Environmental monitoring and data logging
DIY irrigation controllers
Educational electronics projects
Water level detection in various mediums

Package Includes:

1x Soil Moisture Sensor Module (PCB). 1x Soil Probe. 1x Connection Cable.

*Image shown is a representation only.
