2 Meter per quantity : Nylon 12mm Expandable Braided Sleeve for Wire Protection (Black)

2 Meter Nylon 12mm Expandable Braided Sleeve for Wire Protection, Black

This 2 Meter Nylon 12mm Expandable Braided Sleeve provides wire protection and organization. It is constructed from PA 6.6 Nylon. The black sleeve insulates, identifies, and decorates wire harnesses. Its expandable nature facilitates application over pre-terminated connectors. The sleeve resists abrasion, heat, and various chemical agents. It maintains its structural integrity after bending. This design reduces harness weight while providing durability. It allows access for breakouts and cable grooming.

Specifications:

• Length: 2 Meter
• Colour: Black
• Nominal Diameter: 12mm
• Material: Nylon/PET (PA 6.6)
• Expansion Ratio: Up to 150%
• Melting Point: 230°C ± 5
• Fireproofing Grade: UL94V-2
• Temperature Endurance: -50°C to +150°C

Key features and benefits:

• Lightweight and flexible construction.
• Expands up to 150% of nominal diameter.
• Resists abrasion, heat up to 150°C, and chemical agents.
• Self-extinguishing, UL94V-2 fireproofing grade.
• Retains shape post-bending or crushing.
• Reduces harness weight while maintaining durability.
• Facilitates access for breakouts and cable grooming.

Applications:

• Robotics moving assemblies, including 3D printers and humanoid robots.
• General electrical and industrial wire harnessing.
• Protection for hoses, cable assemblies, and wire bundles.
• Organization and securing of wires in electronic projects.

Frequently Asked Questions:

Q: What is the maximum bundle diameter this 12mm sleeve can accommodate?
A: The sleeve expands up to 150% of its 12mm nominal diameter, accommodating bundles up to approximately 18mm.

Q: Can this sleeve be cut without fraying?
A: The sleeve can be cut to length. A hot knife or heat source can prevent fraying at the cut ends.

Q: Is this sleeve resistant to common automotive fluids?
A: The sleeve offers resistance to chemical agents, including many common automotive fluids.

Q: What is the temperature range for safe operation?
A: The sleeve has a temperature endurance from -50°C to +150°C.

Package Includes:

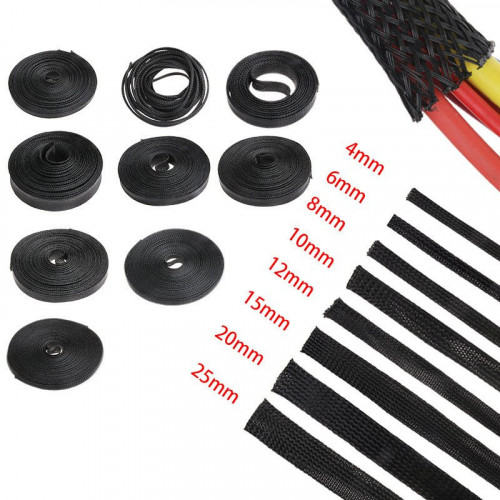

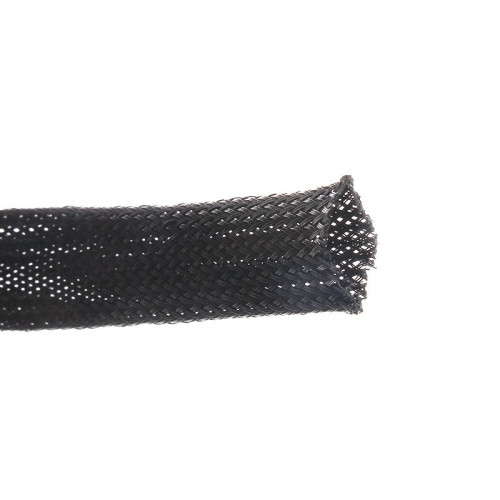

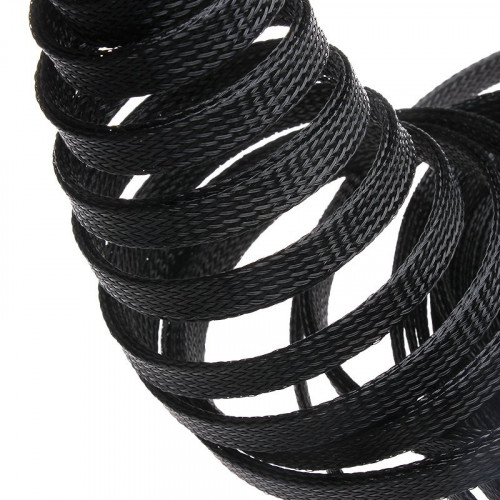

*Image shown is a representation only.
