8 Pin - DIP IC Socket/Base (DIP-8pin)

8 Pin DIP IC Socket/Base (DIP-8pin)

The 8 Pin DIP IC Socket/Base (DIP-8pin) is an essential component for any electronics project. It provides a reliable and convenient way to mount your 8-pin dual in-line package integrated circuits. This socket is designed to protect sensitive ICs from potential heat damage during soldering. It also allows for easy removal and replacement of ICs, making it perfect for prototyping and testing various circuits. Crafted from durable black thermoplastic with tin-plated alloy contacts, it ensures excellent conductivity and longevity. The integrated notch aids in correct IC orientation, preventing incorrect insertion. Its robust design supports through-hole mounting on PCBs. You can even mount multiple sockets end-to-end for custom configurations. This socket is a must-have for hobbyists and professionals alike.

Specifications:

• Pin Count: 8 pins
• Pin Configuration: DIP-8
• Overall Height Above PCB: 4.8mm
• PCB Hole Required: 0.6mm
• Pitch Width: 7.62mm (0.3in)
• Pin Pitch: 2.54mm (0.1in)
• Body Material: Black Thermoplastic
• Contact Material: Tin-plated alloy
• Mounting Type: Through-hole

Key features and benefits:

• Prevents damage to ICs from soldering heat and static discharge.
• Facilitates easy removal and replacement of ICs for testing or upgrades.
• Constructed from durable black thermoplastic for longevity.
• Features tin-plated alloy contacts for reliable electrical connection.
• Notched design ensures correct IC orientation and prevents incorrect insertion.
• Designed for secure through-hole mounting on Printed Circuit Boards (PCBs).
• Standard 2.54mm (0.1in) pin pitch for broad compatibility.
• Can be mounted end-to-end to accommodate longer ICs or custom layouts.

Applications:

• Prototyping and breadboarding electronic circuits.
• Testing and debugging integrated circuits without permanent soldering.
• Educational electronics projects and DIY kits.
• Repair and maintenance of electronic devices requiring IC replacement.
• Custom PCB designs where ICs need to be easily swappable.

Package Includes:

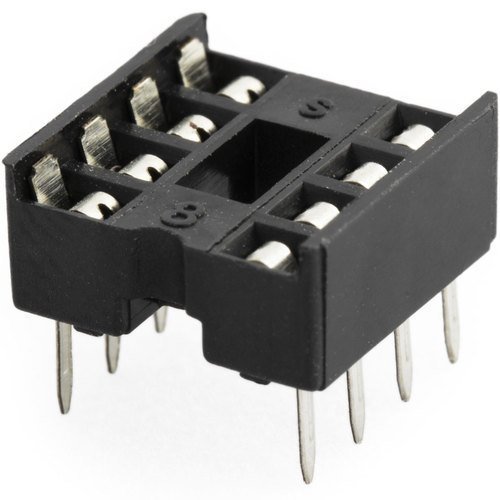

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
