10pcs: 8.2V Zener Diode - 500mW ( 8v2 / 0.5W) : SOD-80 [SMD/SMT]

8.2V 500mW Zener Diode (8V2 / 0.5W) - SOD-80 SMD/SMT (10 Pcs)

This pack contains 10 units of 8.2V Zener Diodes. Each diode provides 500mW power dissipation. The components are supplied in the SOD-80 SMD/SMT package. They maintain stable voltage levels. A 5% voltage tolerance is specified. These diodes are for voltage regulation and circuit protection. They are suitable for surface mount assembly. This 10-piece pack supports various design requirements.

Specifications:

• Zener Voltage (Vz): 8.2 V
• Power Dissipation (Pd): 500 mW
• Voltage Tolerance: 5 %
• Zener Impedance (Zz): 40 Ohms
• Reverse Current (Ir): 1 µA
• Mounting Style: SMD/SMT
• Package / Case: SOD-80
• Configuration: Single
• Minimum Operating Temperature: -65 °C
• Maximum Operating Temperature: +200 °C
• Length: 3.7 mm
• Height: 1.6 mm

Key features and benefits:

• 8.2V Zener Voltage (Vz)
• 500mW (0.5W) power dissipation
• SOD-80 SMD/SMT package
• 5% voltage tolerance
• Operating temperature range: -65°C to +200°C
• Reverse current: 1 µA
• Surface mount assembly compatibility
• Circuit protection and voltage stabilization

Applications:

• Voltage regulation circuits
• Overvoltage and surge protection
• Voltage reference sources
• Signal clipping and clamping
• Power supply output stabilization

Frequently Asked Questions:

Q: What is the polarity of this Zener diode?
A: Zener diodes have a specific polarity, typically marked with a band indicating the cathode.

Q: Can this 8.2V Zener diode replace a 9.1V Zener diode?
A: No, replacing with a different Zener voltage will alter the regulated voltage or protection threshold.

Q: Is the SOD-80 package compatible with through-hole mounting?
A: No, the SOD-80 package is designed for Surface Mount Device (SMD/SMT) assembly only.

Package Includes:

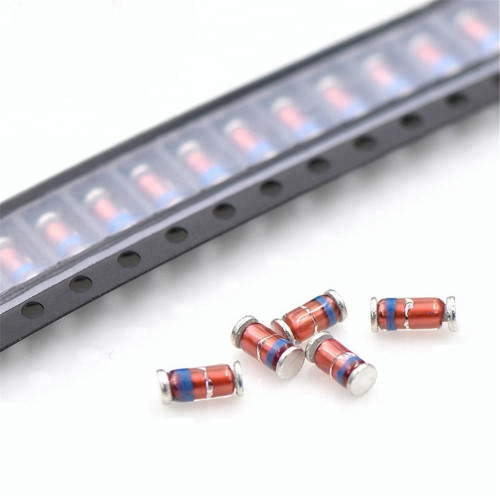

*Image shown is a representation only.
