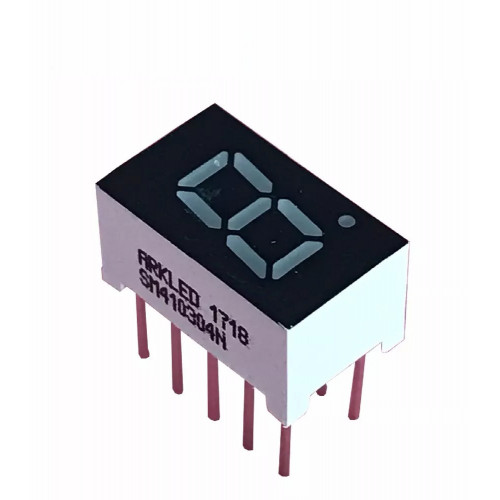

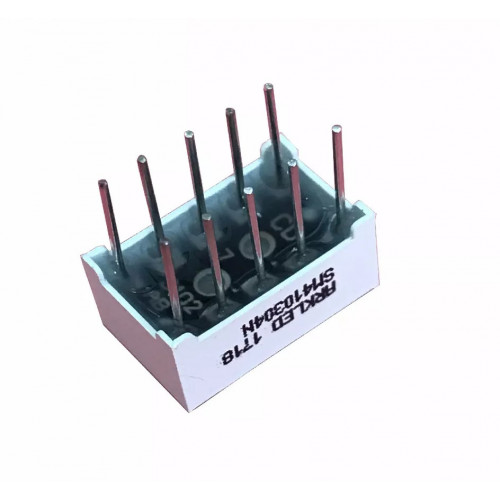

0.3 inch RED LED CA : 7-Segment Display - Common Anode [+] (0.3")
- Product Code: LED-7SDCA03
- Availability: In Stock
-
₹9.50 (+ GST)
- 10 or more quantity/sets : ₹9.00
- 50 or more quantity/sets : ₹8.75
- 100 or more quantity/sets : ₹8.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)
0.3" Red LED 7-Segment Display - Common Anode
This 0.3-inch Red LED 7-Segment Display operates with a common anode configuration. It provides numeric readouts with a 7.62mm character height. The display utilizes red LED illumination, featuring a dominant wavelength of 640nm. It is designed for integration into electronic circuits. High brightness ensures visibility across various lighting conditions. The component is constructed for long-term operational reliability. It is suitable for both prototyping and professional instrumentation. This display is RoHS compliant.

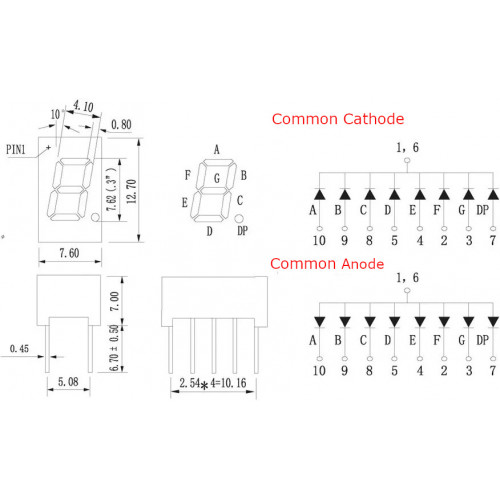

Specifications:
- Display Type: 7-Segment LED
- Configuration: Common Anode (+)
- Digit Quantity: 1
- Character Height: 0.3" (7.62mm)
- LED Color: Red
- Dominant Wavelength: 640nm
- Luminous Intensity: 80-100mcd/chip
- Input Voltage: 1.8-2.3V
- Current: 20mA
- Mounting: Easy to Mount
- Compliance: RoHS Compliant
Key features and benefits:
- 0.3" (7.62mm) character height.
- Common Anode configuration.
- Red LED color.
- High brightness output.
- Wide viewing angle.
- Durable construction.
- RoHS Compliant.
Applications:
- Digital clocks, timers, and countdown devices.
- Instrumentation panels and measurement displays.
- Electronic gadgets and DIY hobby projects.
- Educational tools for demonstrating electronics principles.
- Scoreboards and status indicators.
Frequently Asked Questions:
Q: What is a common anode configuration?
A: In a common anode 7-segment display, all LED anodes are connected to a common positive voltage supply. Individual segments are illuminated by grounding their respective cathodes.
Q: What is the character height of this display?
A: The character height of this 7-segment display is 0.3 inches (7.62mm).
Q: What is the operating voltage and current for this LED display?
A: The input voltage range is 1.8-2.3V, with a typical operating current of 20mA per segment.
Package Includes:
1x 0.3" Red LED 7-Segment Display - Common Anode.*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
