6 Mhz Crystal SMD- 20ppm, 7pf [HC49] - YXC [Original]

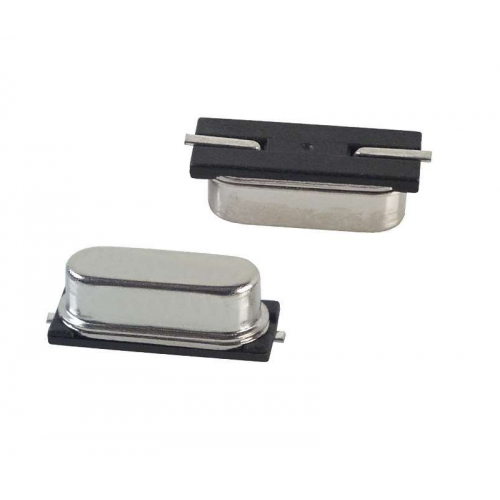

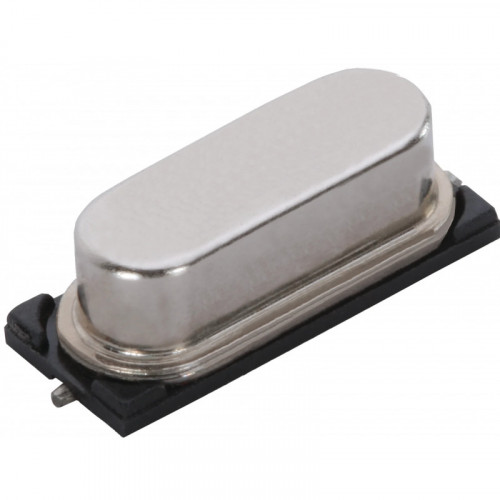

YXC 6 MHz SMD Crystal Oscillator HC49 - ±20ppm, 7pF

The YXC 6 MHz SMD Crystal Oscillator is designed for frequency generation. It operates at a rated frequency of 6 MHz. This component utilizes surface-mount technology (SMD/SMT). It features a frequency tolerance of ±20 ppm. The load capacity is specified at 7 pF. The oscillator is housed in an HC49 quartz case. Operating temperature range is -10°C to 85°C. Dimensions are 11.5 x 4.80 x 3.8 mm. It provides timing for various electronic circuits. Equivalent Series Resistance is 80 ohm Max.

Specifications:

• Rated Frequency: 6 MHz
• Mounting Style: SMD/SMT
• Manufacturer: YXC
• Frequency Tolerance: ±20 ppm
• Load Capacity: 7 pF
• Quartz Case: HC49
• Operating Temperature (Min): -10°C
• Operating Temperature (Max): 85°C
• Equivalent Series Resistance: 80 ohm Max

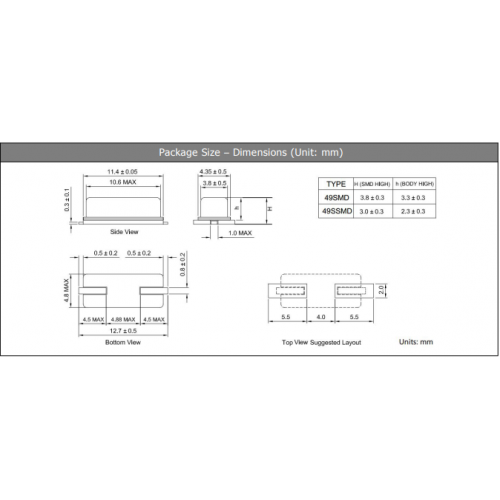

• Dimensions (L x W x H): 11.5 x 4.80 x 3.8 mm

Key features and benefits:

• 6 MHz rated frequency
• Surface Mount Device (SMD/SMT) mounting style
• Frequency tolerance of ±20 ppm
• 7 pF load capacity
• HC49 quartz case
• Operating temperature range: -10°C to 85°C
• Equivalent Series Resistance (ESR) of 80 ohm Max
• Dimensions: 11.5 x 4.80 x 3.8 mm

Applications:

• Microcontroller clock generation
• Wireless communication modules
• Embedded systems and IoT devices
• Digital signal processing (DSP)
• Real-time clock (RTC) circuits
• Consumer electronics

Frequently Asked Questions:

Q: What is the function of a crystal oscillator?
A: A crystal oscillator generates a precise electronic signal with a specific frequency, used for timing and clock signals in digital circuits.

Q: What does ±20 ppm frequency tolerance signify?
A: A frequency tolerance of ±20 ppm indicates that the actual operating frequency will deviate by no more than 20 parts per million from the rated frequency of 6 MHz.

Q: What is the significance of the HC49 package for SMD crystals?
A: The HC49 package is a standard surface-mount enclosure for quartz crystals, providing mechanical protection and facilitating automated assembly on printed circuit boards.

Package Includes:

*Image shown is a representation only.
