4xAA Battery Holder - AA Batteries 4 Cells

4xAA Battery Holder - 4 Cell AA Power Module

This 4xAA Battery Holder accommodates four AA batteries. It functions as a power source for electronic circuits. The holder provides output voltages of 1.5V, 3V, or 6V, configurable via series or parallel wiring. It features ABS plastic construction. Connection to circuits is facilitated by integrated wire leads. The design supports free-standing or panel-mountable installations. This component is suitable for various low-voltage applications. It delivers power for portable electronic devices.

Specifications:

• Battery Type: AA (UM-3)
• Number of Cells: 4
• Nominal Output Voltage (Series): 6V (4 x 1.5V)
• Nominal Output Voltage (Parallel): 1.5V
• Material: ABS Plastic
• Connection: Wire Leads (Red/Black)
• Mounting Style: Free-standing / Panel Mountable
• Color: Black

Key features and benefits:

• Houses four standard AA (UM-3) batteries.
• Configurable power output: 1.5V, 3V, or 6V.
• ABS plastic construction.
• Compact dimensions.
• Provides a secure battery connection.
• Wire lead connection interface.
• Supports free-standing or panel mounting.

Applications:

• DIY electronic projects and prototypes.
• Robotics and remote-controlled devices.
• Educational kits and science experiments.
• Portable lighting solutions.
• Small motor drivers and sensors.
• Custom power supplies for low-voltage circuits.

Frequently Asked Questions:

Q: What output voltages can this battery holder provide?
A: The holder can provide 1.5V (parallel connection), 3V (two cells in series), or 6V (all four cells in series).

Q: What type of batteries are compatible with this holder?
A: This holder is designed for standard AA (UM-3) batteries.

Q: How are connections made to a circuit board?
A: The holder includes integrated red and black wire leads for direct connection to a circuit board.

Q: Can this holder be mounted permanently?
A: Yes, it supports both free-standing placement and panel mounting.

Q: What is the polarity of the wire leads?
A: Typically, the red wire lead indicates positive (+) and the black wire lead indicates negative (-).

Package Includes:

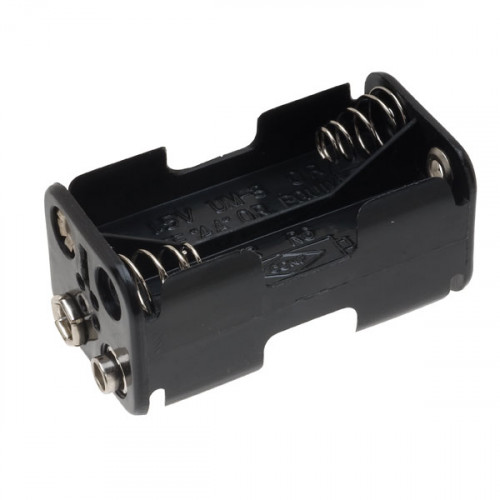

*Image shown is a representation only.
