470nf 440V (0.47uf/440VAC - 474K) Pitch:27mm Box Capacitor - Polyester

470nf (0.47uf) 440VAC Polyester Box Capacitor, 27mm Pitch

This 470nf (0.47uf) 440VAC Polyester Box Capacitor provides stable power filtering and signal coupling. It features a precise 470nf capacitance and a 440VAC rating. The polyester film construction contributes to stability and low leakage current. A 27mm lead pitch facilitates secure mounting on PCBs. This component offers ±5% accuracy and operates across a wide temperature range. It is suitable for various AC/DC applications. The design ensures consistent performance in demanding circuits. This component is RoHS compliant.

Specifications:

• Capacitance: 470nf (0.47uf)
• Voltage Rating: 440VAC
• Tolerance: ±5%
• Pitch (Lead Space): 27mm
• Dimensions (LxW): 32mm x 20mm
• Dielectric Material: Polyester Film
• Operating Temperature: -55°C to +125°C
• Type: Box Capacitor
• RoHS Compliant: Yes

Key features and benefits:

• Accuracy: ±5%
• Polyester film dielectric
• Operating temperature range: -55°C to +125°C
• Low leakage current
• 27mm lead pitch
• RoHS compliant
• 440VAC voltage rating
• Box-type construction

Applications:

• Power supply filtering and smoothing circuits
• Audio amplifier coupling and decoupling
• Timing and oscillation circuits
• General purpose AC/DC applications
• Industrial control and automation systems

Frequently Asked Questions:

Q: Is this capacitor polarized?
A: No, polyester film capacitors are non-polarized components.

Q: What is the lead pitch of this capacitor?
A: The lead pitch is 27mm, facilitating PCB mounting.

Q: Can this 440VAC capacitor replace a lower voltage capacitor?
A: A 440VAC capacitor can replace a lower voltage capacitor if the capacitance and other specifications match. The voltage rating must meet or exceed the circuit's requirements.

Q: What is the significance of the 470nf (0.47uf) rating?
A: 470nf and 0.47uf are equivalent capacitance values, representing 470 nanofarads or 0.47 microfarads.

Package Includes:

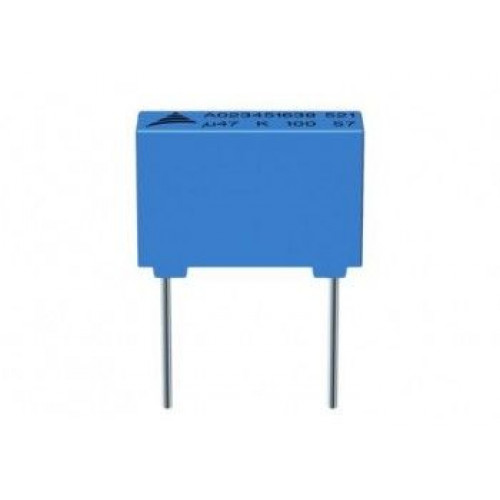

*Image shown is a representation only.
