5pcs : 470E ohm Array Series [smd] (470R) -resistor 5% - 1206 package - Yageo
- Product Code: smd-r-470E_4-1206
- Availability: In Stock
-
₹9.00 (+ GST)
- 10 or more quantity/sets : ₹8.50
- 50 or more quantity/sets : ₹8.00
- 100 or more quantity/sets : ₹7.50
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

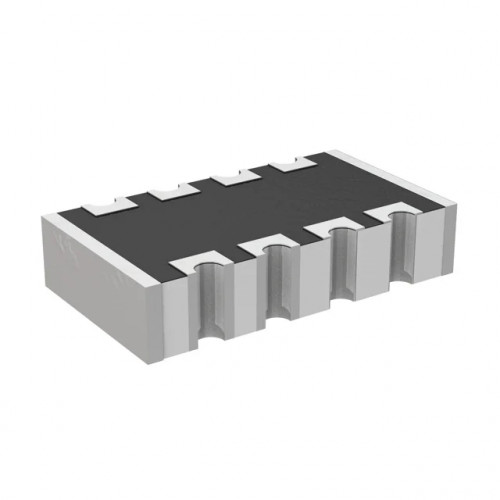

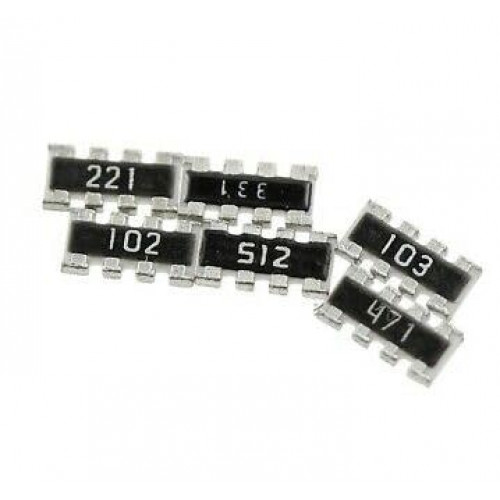

470 Ohm Resistor Array Series SMD 1206 (Yageo), 5% Tolerance (5 Pcs)
The 470 Ohm SMD resistor array series from Yageo is a reliable thick film resistor network designed for compact and high-density PCB layouts. This series integrates multiple identical resistors into a single 1206 surface-mount package, reducing board space and improving assembly efficiency. With ±5% tolerance, it offers stable electrical performance for general-purpose electronic and industrial circuits.
Specifications:
- Resistance Value: 470 Ohm (470R)
- Resistor Configuration: Array / Series Network
- Tolerance: ±5%
- Package Type: 1206 SMD
- Mounting Type: Surface Mount
- Resistor Technology: Thick Film
- Brand: Yageo
- Dimensions (1206 Package – Typical): 3.2 mm × 1.6 mm × 0.55 mm
Key features and benefits:
- Multiple equal-value resistors in a single SMD package
- Compact design reduces PCB size and component count
- Thick film construction ensures stable resistance
- ±5% tolerance suitable for general electronic use
- Compatible with automated SMT assembly processes
- Reliable long-term electrical performance
Applications:
- Pull-up and pull-down resistor networks
- Signal conditioning circuits
- Voltage divider arrays
- Microcontroller and logic interface circuits
- Consumer electronic devices
- Industrial control and automation boards
- Compact and high-density PCB designs

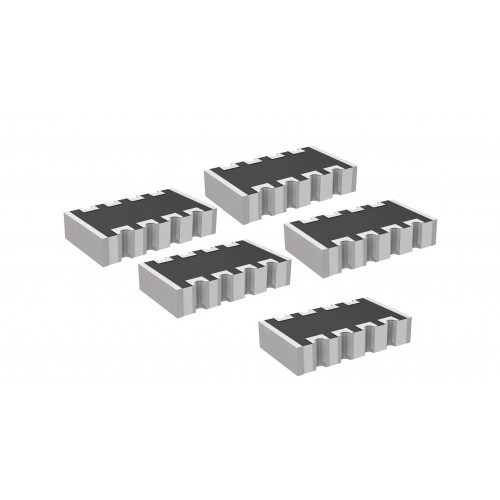

Package Includes:
5 x 470E ohm Array Series [smd] (470R) -resistor 5% - 1206 package - Yageo*Image shown is a representation only.
